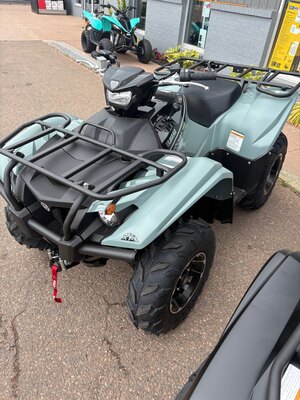

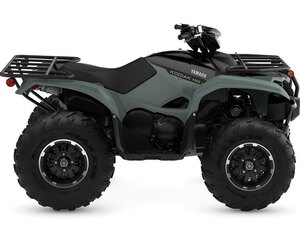

2026 Yamaha Kodiak 700 EPS XT-R

Call Email

Location:
Dennis Motors

$14,874 CAD

*Price Includes Freight & PDI. Plus Tax

Contact Us Insurance Quote Get Approved Value a Trade Get Directions Get Directions Print

Province

Prince Edward Island

ANY TASK, ANY TIME. With aluminum wheels to complement painted plastics and eye‑catching graphics, this class‑leading XT-R is ready for work or play.

Model

Kodiak

Category Name

Sale Type

Manufacturer

Yamaha

5Y4AMM1W4TA302206

Color

Moss Grey & Tactical Black

Class

CodeName

Kodiak 700 EPS XT-R

BodyStyle

Model Code

YFM70KPZTM

Titlestatus

CLEAN

Unitcondition

EXCELLENT

Numberofwheels

Model Code

YFM70KPZTM

Province

Prince Edward Island

engine

Engine

Liquid-cooled, SOHC 4-stroke

Ignition

Starting

Electric

Final Drive

On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft

Lubrication

Wet sump

Displacement

686cc

Transmission

Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P

Fuel Delivery

Yamaha Fuel Injection (YFI), 44 mm

Bore And Stroke

102 mm x 84 mm

Compression Ratio

10 : 1

Tires (Rear)

Maxxis MU20, AT25 x 10-12

Brakes (Rear)

Multi-Disc wet brake

Tires (Front)

Maxxis MU19, AT25 x 8-12

Brakes (Front)

Dual hydraulic disc

Suspension (Rear)

Adjustable independent double wishbone with anti-sway bar; 5-way preload adjustment / 232 mm (9.1") of wheel travel

Suspension (Front)

Independent double wishbone; 5-way preload adjustment / 180 mm (7.1") of wheel travel

CAPABILITY

With the simple push of a button, the three-position On-Command® 4WD system lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD. An override button allows the engine to reach maximum rpm in full differential lock mode.

COMFORT

The Kodiak 700 EPS XT-R further enhances rugged terrain capability and confidence with a factory-installed WARN® VRX 25 winch and high-quality painted bodywork.

CONFIDENCE

To handle nearly any terrain with ease, the Kodiak 700 EPS SE offers an impressive 10.8 inches of ground clearance and full-length composite skid plates for maximum underbelly protection.

CONFIDENCE

The Kodiak 700 EPS SE transmission uses its own cooling intake to maintain proper temperatures, an oversized belt to handle the torque of the large motor and Yamaha’s unique sprag clutch to maintain constant belt tension. The end result is a drivetrain built for years of trouble-free service that leaves the competition in the dust, and is backed by the industry's only 10-Year V-Belt Limited Warranty.

key features

Powerful 686cc engine
Speed-sensitive electric power steering (EPS)
On-Command® four-wheel drive system
High Performance Ultramatic® Transmission
Wide-arc A-arms
Full-length composite skid plates
2,500 lb Warn® VRX winch
12-inch aluminum wheels wrapped in 25-inch Maxxis® tires
High-quality painted bodywork

critical data

Width

1180 mm (46.5")

Height

1240 mm (48.8")

Length

2070 mm (81.5")

Warranty

One year (unlimited mileage) / 10 Year Belt Warranty

Wheelbase

1250 mm (49.2")

Wet Weight

311 kg (686 lb) 324 kg (714 lb) Winch model

Seat Height

860 mm (33.9")

Turn Radius

3200 mm (126")

Tread (Rear)

915 mm (36")

Fuel Capacity

18 L

Tread (Front)

940 mm (37")

Towing Capacity

600 kg (1,322 lb)

Rack Capacity (Rear)

90 kg (198 lb)

Rack Capacity (Front)

50 kg (110 lb)

Maximum Ground Clearance

274 mm (10.8")

features & benefits

ENGINE

Big Bore Engine Built to Tackle the Real World
- 700-class engine with improved midrange performance and optimized torque right where you use it most
- Gearing designed for low rpm cruising and smooth running motor mounts to create excitement on the trails while still being quiet and potent for the job site
High-Performance Ultramatic® Transmission
- Features gated shifter, dual-range (Hi/Lo) drive plus reverse gear
- Most advanced and durable CVT system available
- Automatic centrifugal clutch maintains constant belt tension for reduced belt wear
- Sprag clutch delivers natural all-wheel engine braking for control and confidence
Selectable On-Command® 4WD
- 4WD system lets you switch between 2WD, 4WD limited-slip and 4WD with diff lock
- Diff lock initiated by a simple push of a button, giving the rider direct control over available traction
Stainless Steel Exhaust
- Maintains clean-running performance
- Features screen-type spark arrestor for great power with minimum noise output
Drive System Air Intake
- Specially designed, high-mounted drive system air intake
- Helps reduce drive system temperatures and assists in keeping water and debris from entering the drive case
- Increases power and torque while providing additional room for on-board storage
High-Capacity Radiator
- Efficient high-capacity radiator with fan assist that delivers plenty of air flow for maximum cooling efficiency
- Positioned high in the frame for optimal protection

Chassis

Trail-Ready Chassis
- With plenty of ground clearance and adjustable suspension, the Kodiak tackles rough terrain with ease.
- Wide-arc A-arms and full-body skid plates ensure the Kodiak is able to handle anything the farm or trail can throw at it
High-Performance Tires
- To maximize available traction, the Kodiak features 25-inch Maxxis® tires
- Provide precise steering feel and feedback
Class-Leading Power Steering
- Reduced fatigue, excellent control and trail feel all come standard with Kodiak's best in industry, speed-sensitive Electric Power Steering (EPS)
Independent Double Wishbone Front and Rear Suspension
- 7.6 inches of front wheel travel / 9.1 inches of rear wheel travel
- Provides excellent rider comfort even on the toughest trails
- Nitrogen-charged shocks with 5-way adjustable preload
Aggressive and Durable Styling
- Rugged composite front bumper resists scratching and rust
- Injection-molded fenders and CV joint guards protect again rock and debris
Compact Ergonomics
- A plush seat improves rider comfort for extended days exploring
- Plenty of room for the rider to move during aggressive riding
- Despite full size performance, Kodiak features a more compact body design similar to mid-sized ATV for overall ease in handling
Extensive Cargo Capacity
- Rugged, large-diameter steel cargo racks with durable wrinkle paint finish
- 308 pounds of total carrying capacity
- On-board storage compartment keeps things try
Work-Ready Tow Capacity
- Center-mounted, heavy-duty 2 inch receiver
- Tow up to 600 kg (1322 lb)
Generous Ground Clearance
- Offers impressive 10.8 inches of maximum ground clearance
- Full-length composite skid plate for underbelly protection

Design

Ready for Accessories
- Engineered in concert with a range of accessories for perfect fit and function
- Standard 12V power point to keep devices charged.
