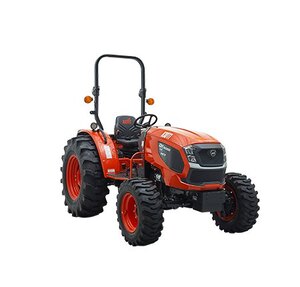

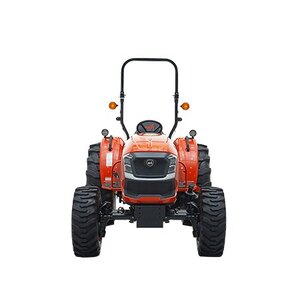

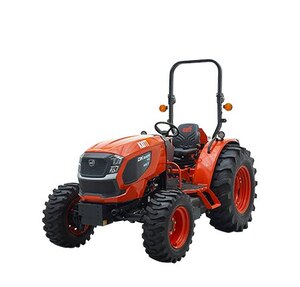

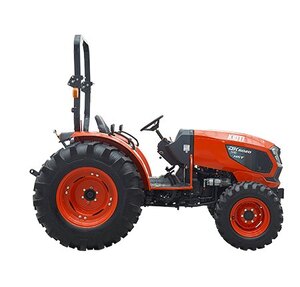

Kioti DK4220SE HST
Photo Gallery
- Location:
- Advantage Tractor & Implement Limited
Call for Price
Tractor & Loader Only
Province
Ontario
Overview
Specifications
engine
weight
features
hydraulics
literature
point hitch
transmission
brakes and clutch
equipment & panel
power take-off (pto)
dimensions w/ ag tire
Documents
|
Model
DK20SE Series
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
Kioti
PTO Type
Independent
Transmission Type
HST
Engine Gross Power
39.6 hp (29.5 kW)
Province
Ontario
Fuel Type
Diesel
Aspiration
Natural
Rated Speed
2,600 rpm
Displacement
111.4 cu. in. (1,826 cc)
Engine Model
3H-TH4A
No. Of Cylinders
3
Engine Gross Power
39.6 hp (29.5 kW)
Fuel Tank Capacity
12.7 gal. (39.6 L)
Weight W/ Ag Tires W/ ROPS
3,523 lbs. (1,598 kg)
Features
 KIOTI Diesel EngineThe new Common Rail Diesel Engine (CRDI) improves fuel efficiency while reducing noise levels. With this eco-friendly Tier 4 engine, the DK10 Series offers the operator a quiet work environment with powerful performance. |
|
The standard power steering minimizes the effort required to make tight, repetitive turns |
|
The 4WD comes standard on all models and is engaged with an easy access lever. |
|
DK10SE models utilize a two pedal system for forward and reverse with smooth engagement, acceleration and deceleration. Dual pedals provide easier use which reduces operator fatigue during long hours of work and when doing repetitive tasks. |
|
|
|
|
|
The illuminated dashboard ensures great visibility while working in all lighting conditions. |
|
The minimum ground clearance of 13.4 in. makes usage on rocky or uneven terrain simpler. |
|
|
|
Conveniently located, this tool box provides storage the operator needs. |
|
A standard single remote valve (2nd optional) accommodates a wide variety of attachments and implements. |
Total Pump Flow
16.49 gpm (62.4 L/min)
Literature
| Name | Link |
| Brochure | Download |
Control Type
Position
Standard Category
Category 1
Lift Capacity, 24" Aft Of Hitch
2,716 lbs. (1,232 kg)
Transmission Type
Hydrostatic
No. Of Travel Speeds - Forward / Reverse
3 Range
Max. Travel Speed Of Forward W/ Ag @ Engine Rated Speed
18.45 mph (29.7 km/h)
Min. Travel Speed Of Forward W/ Ag @ Engine Rated Speed
0 mph (0 km/h)
Brakes
Wet Multi Disc
Clutch
None
Equipment & Panel
|
Standard Equipment
|
|
Optional Equipment
|
|
Instrument Panel
|
PTO Power
29.1 hp (21.7 kW)
Mid PTO Speed
2,000 rpm (Optional)
PTO Type Trans
Independent
Rear PTO Speeds (1st)
540 rpm
Width
62.8 in. (1,596 mm)
Wheelbase
71.3 in. (1,810 mm)
Ground Clearance
14.5 in. (368 mm)
Length W/ 3-point Hitch
125.5 in. (3,189 mm)
Turning Radius W/ Brake
102.8 in. (2,610 mm)
Rear Tread Ag Tires - Min
49.3 in. (1,251 mm)
Front Tread Ag Tires - Min
49.4 in. (1,254 mm)
Min. Turning Radius W/ Brake
102.8 in. (2,610 mm)
