2015 Yamaha AR240

Dimensions & Capacity

• Length Overall (LOA): ~24 ft (standard), up to 25 ft 1 in with trailer tongue folded

• Beam: 8 ft 6 in

• Dry Weight: Approximately 3,369 lb (boat only); 4,719 lb with galvanized trailer

• Fuel Capacity: 50 US gal

• Seating/Load: Capacity for 11 people (up to 2,200 lb)

Propulsion & Performance

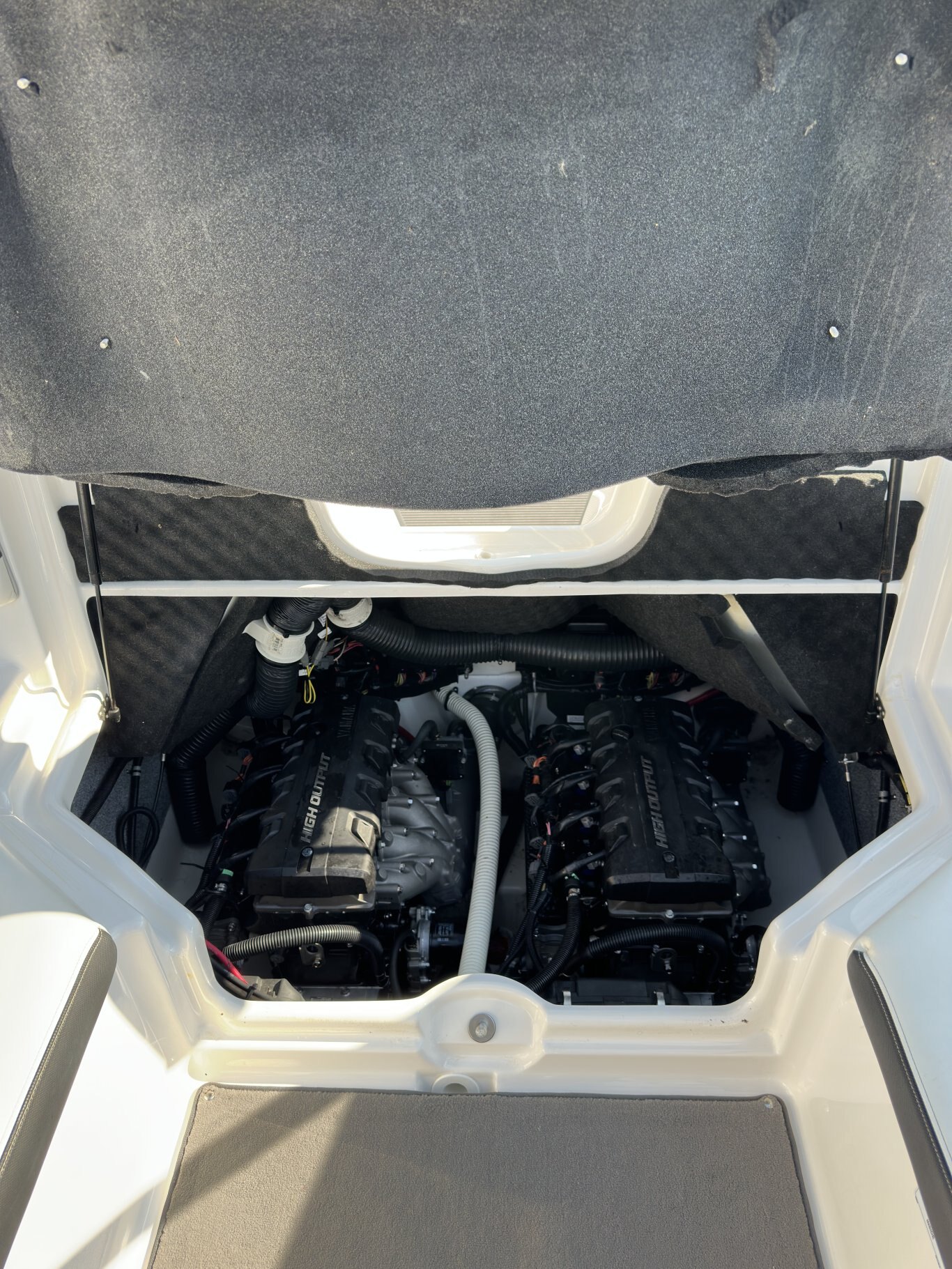

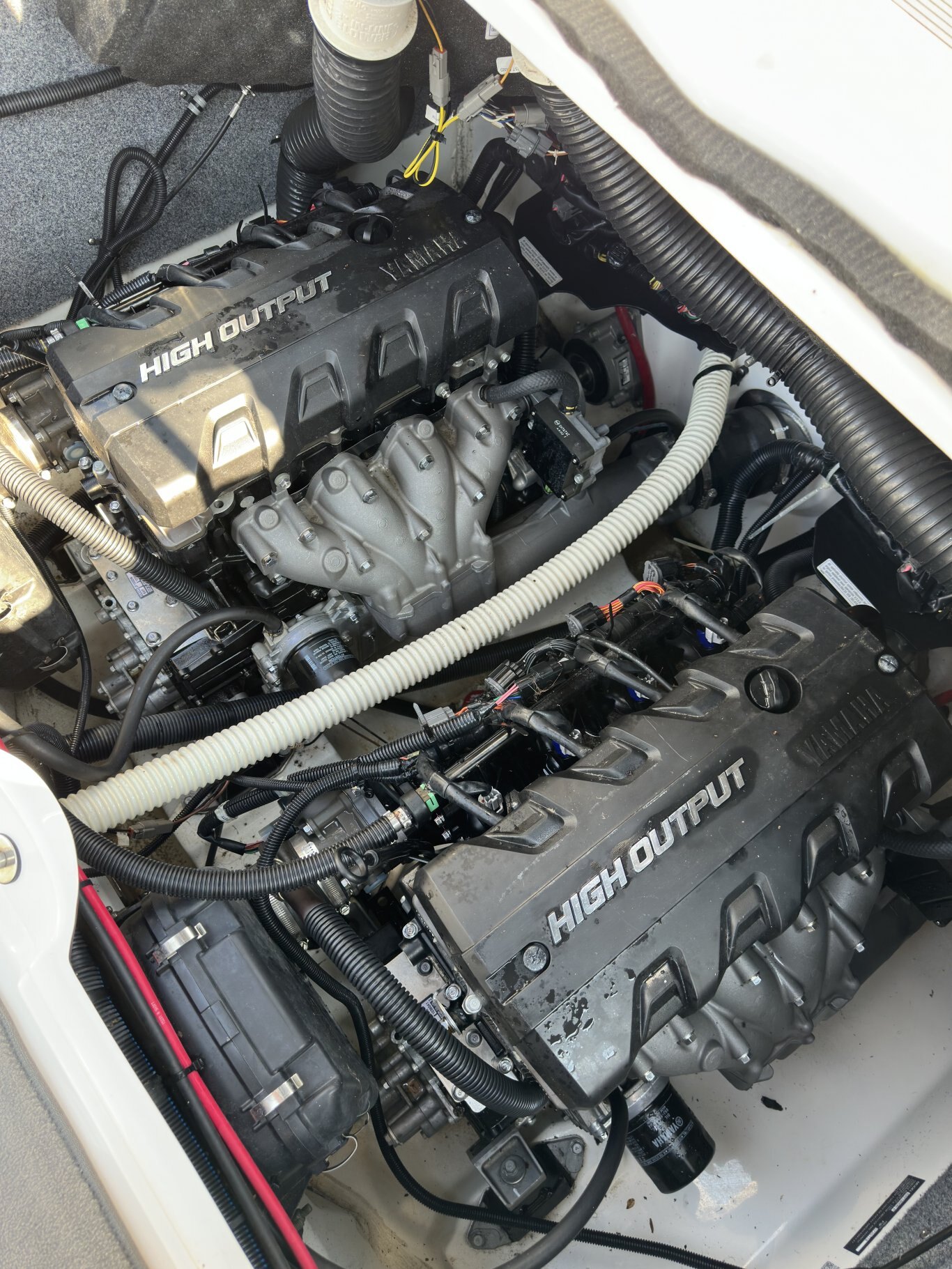

• Engine Configuration: Twin 1.8 L Yamaha High Output marine engines, jet-drive equipped

• Estimated combined power: 360 hp (180 hp per engine)

• Handling: Upgraded with Yamaha’s Advanced Handling Technology, including a dihedral keel and articulated keel extension—improves low-speed tracking and high-speed stability

• Noise Reduction: Significantly quieter than previous models—e.g., at 2,400 rpm: 66 dBA vs. 75 dBA

Hull & Layout

• Deadrise: 20°, contributing to a smoother ride

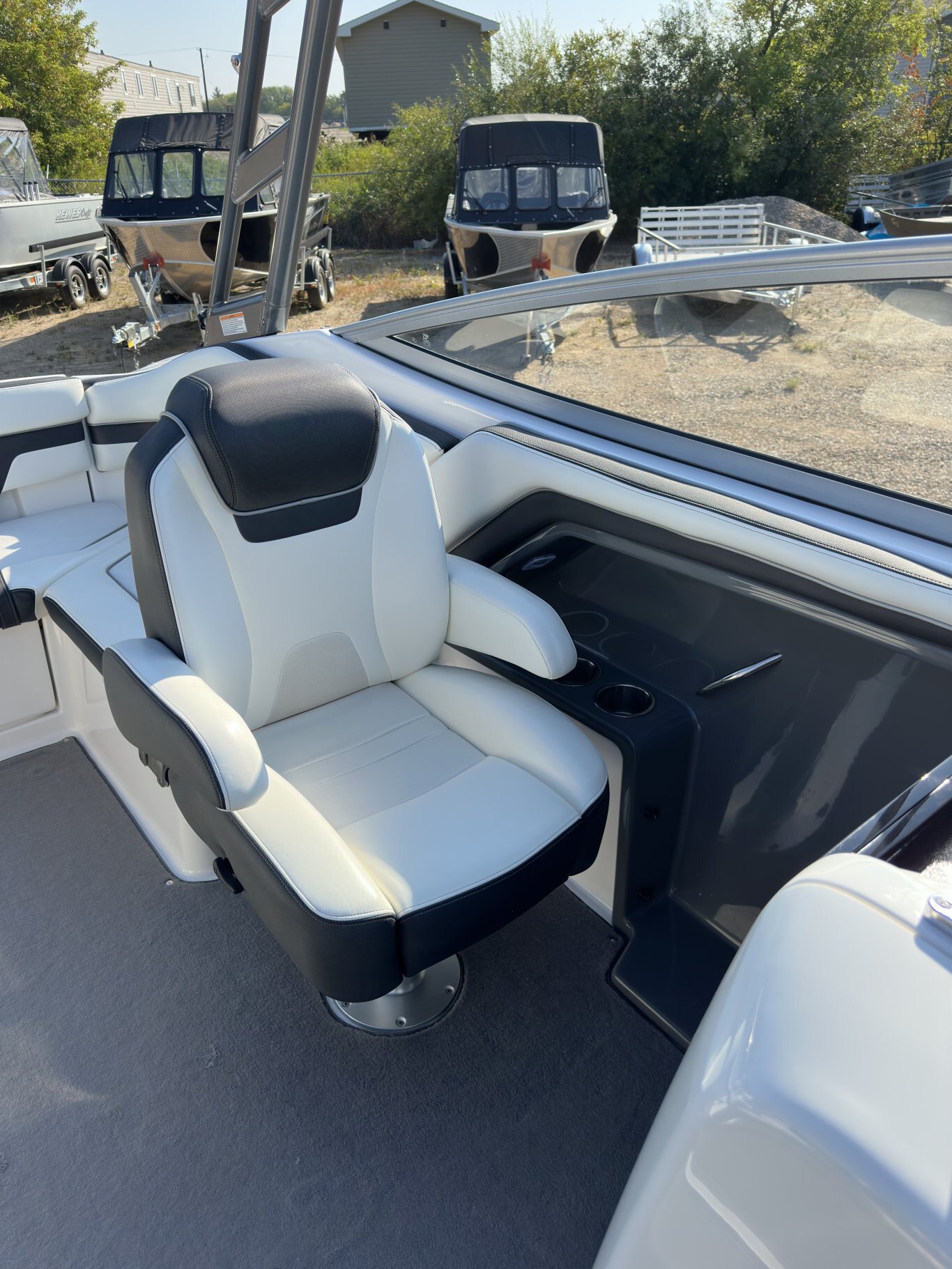

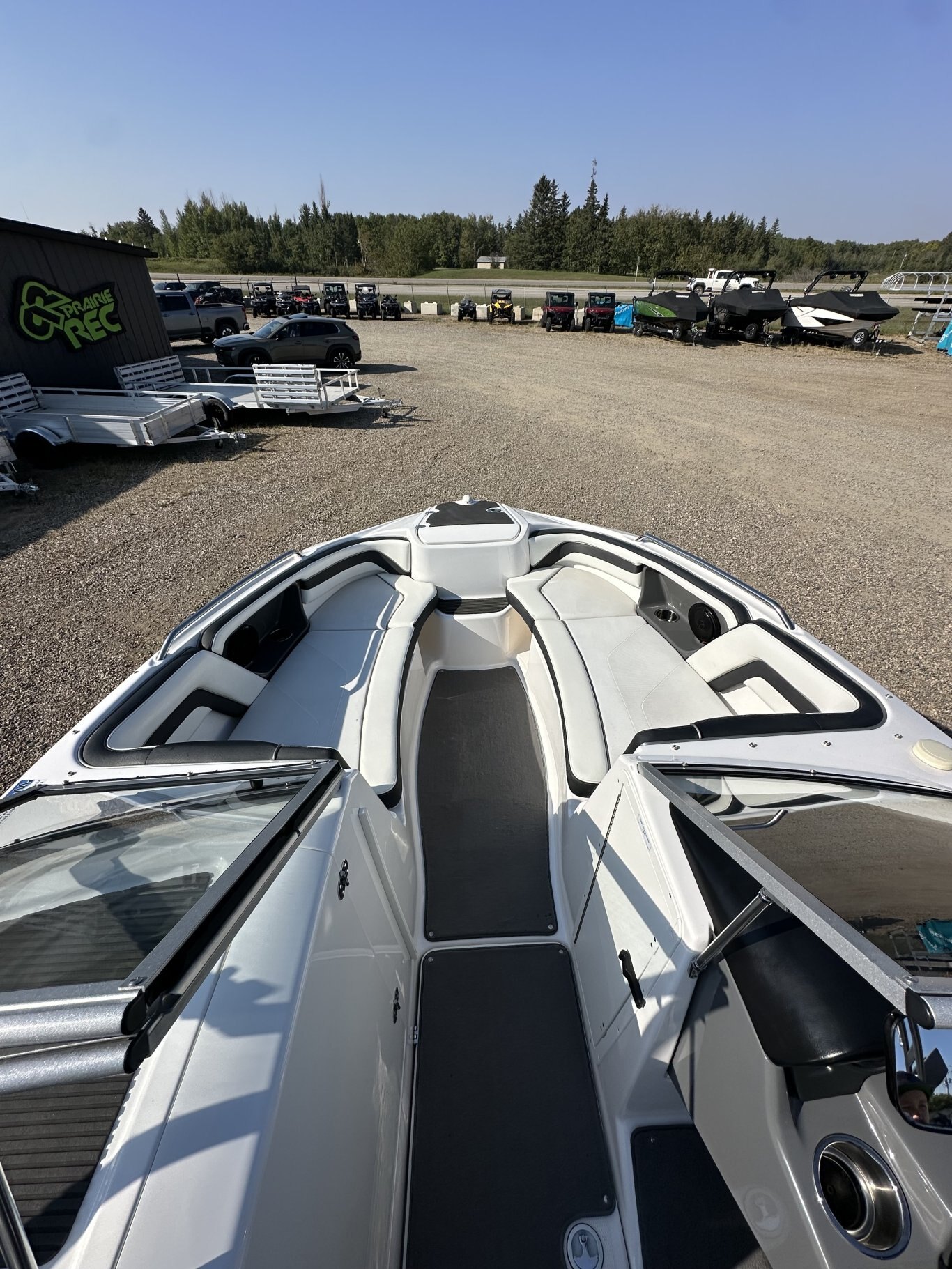

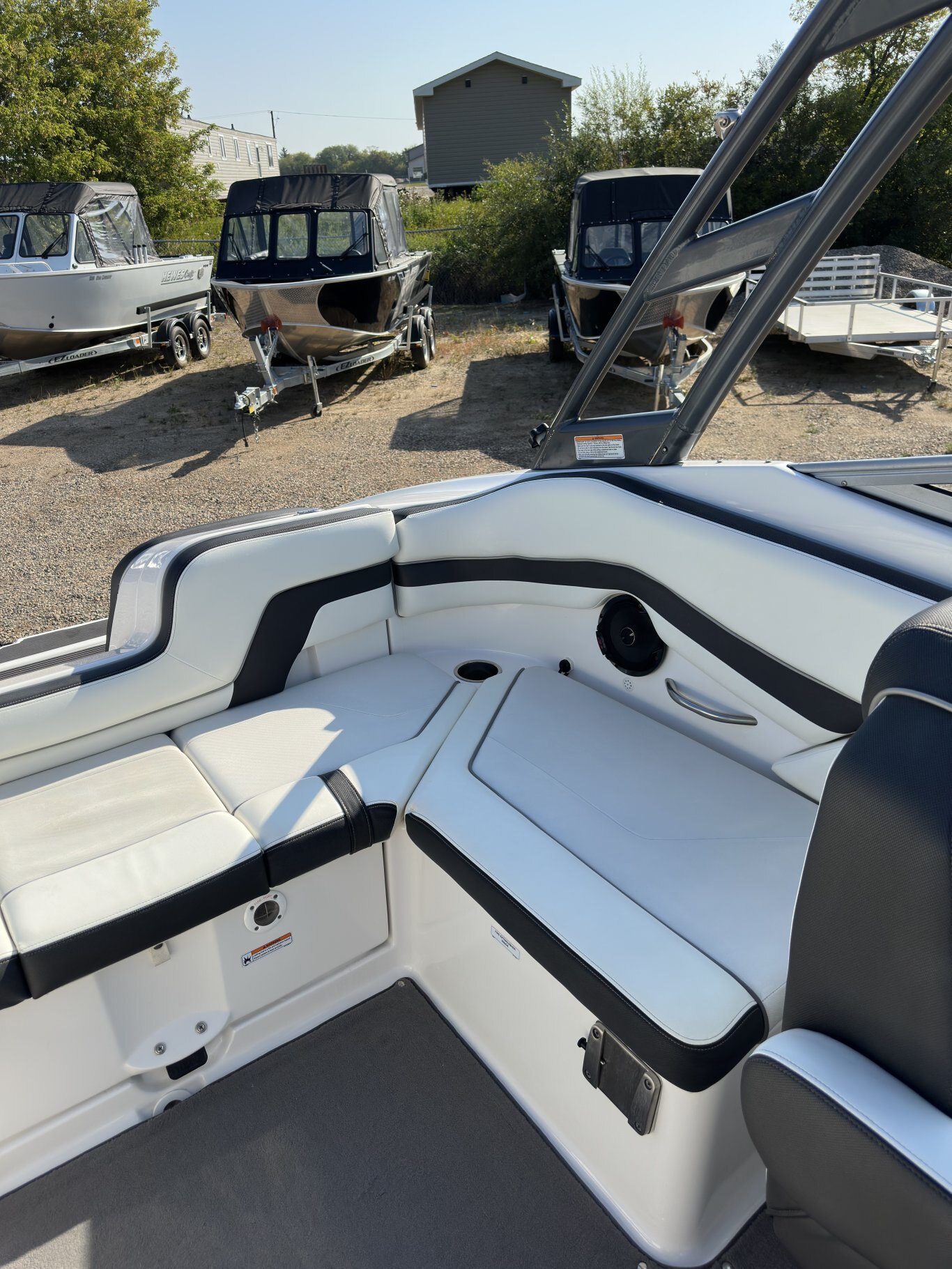

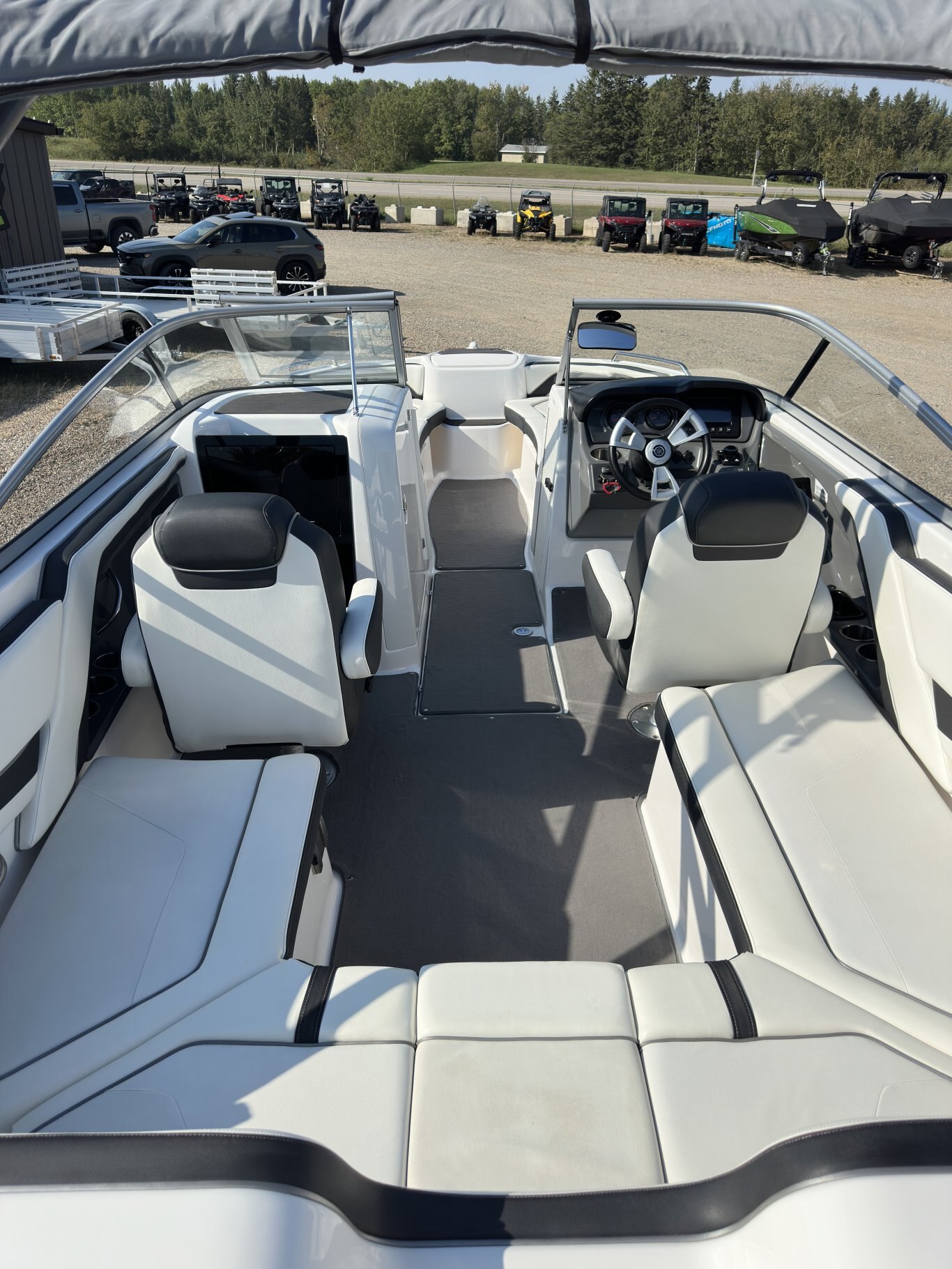

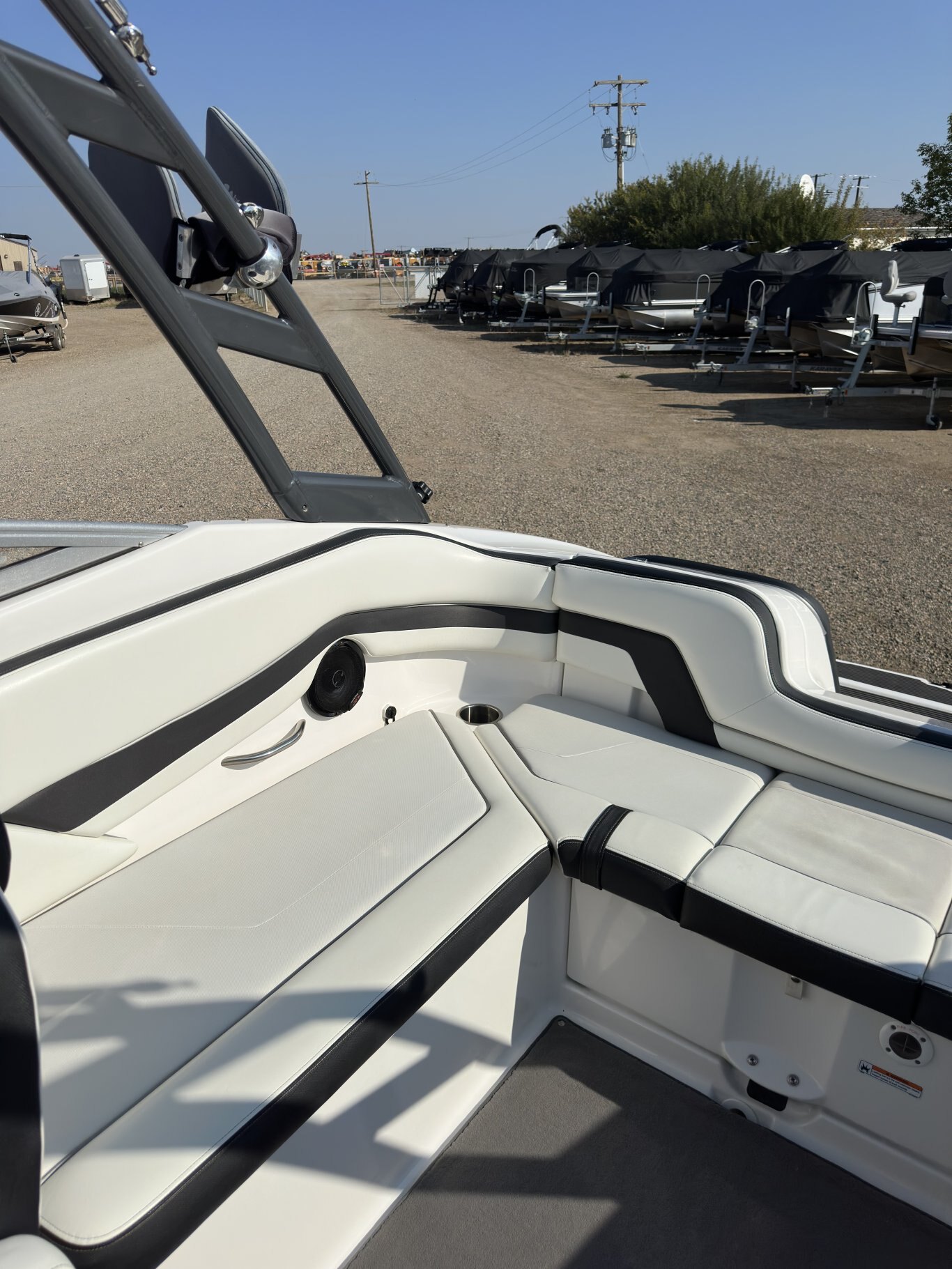

• Cockpit: U-shaped lounge seating, hinged cushions for easy storage access

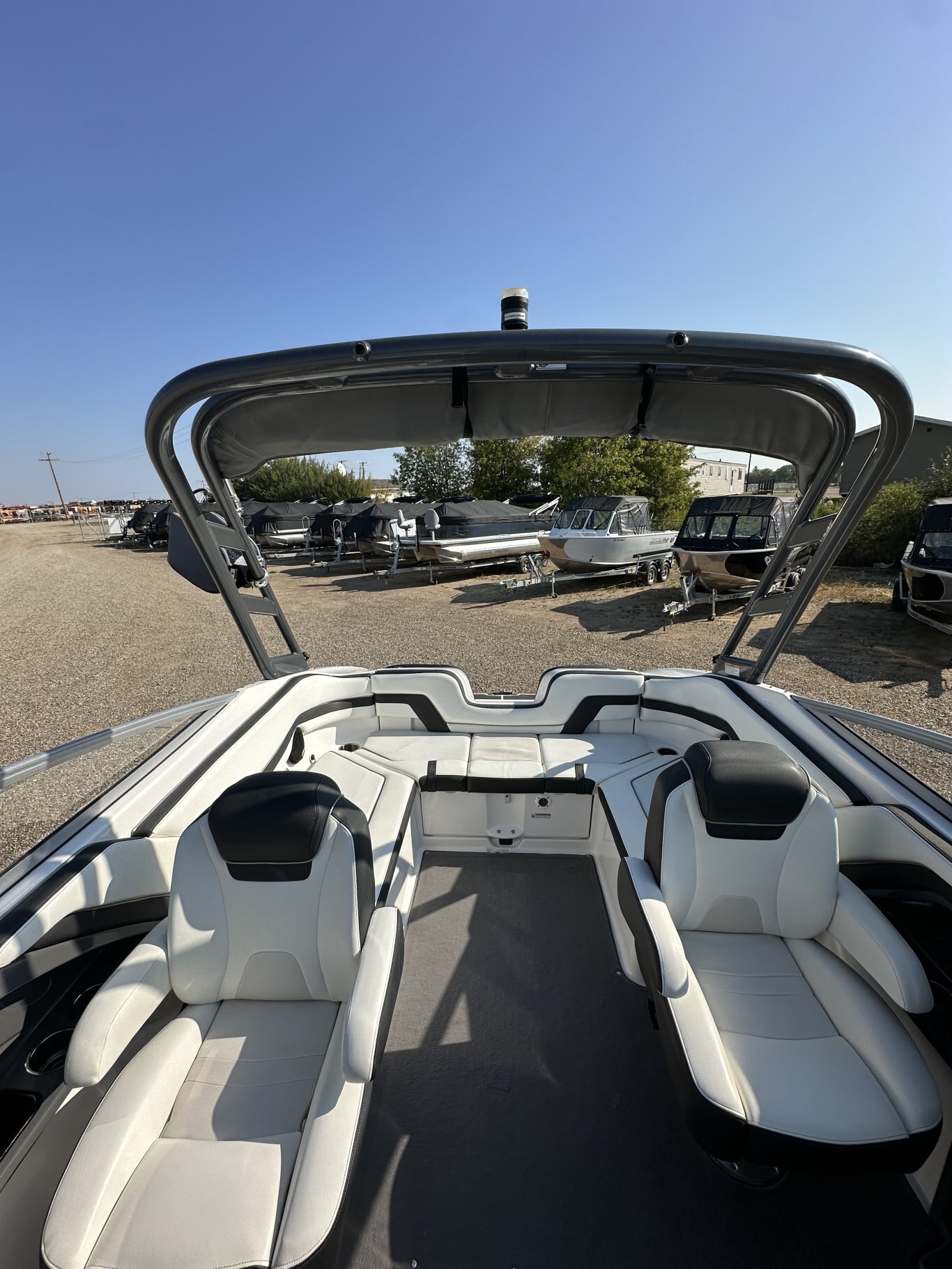

• Tower & Swim Platform: Tow-sports tower (folds for transport) and integrated swim platform just inches above the waterline

Technology & Comfort

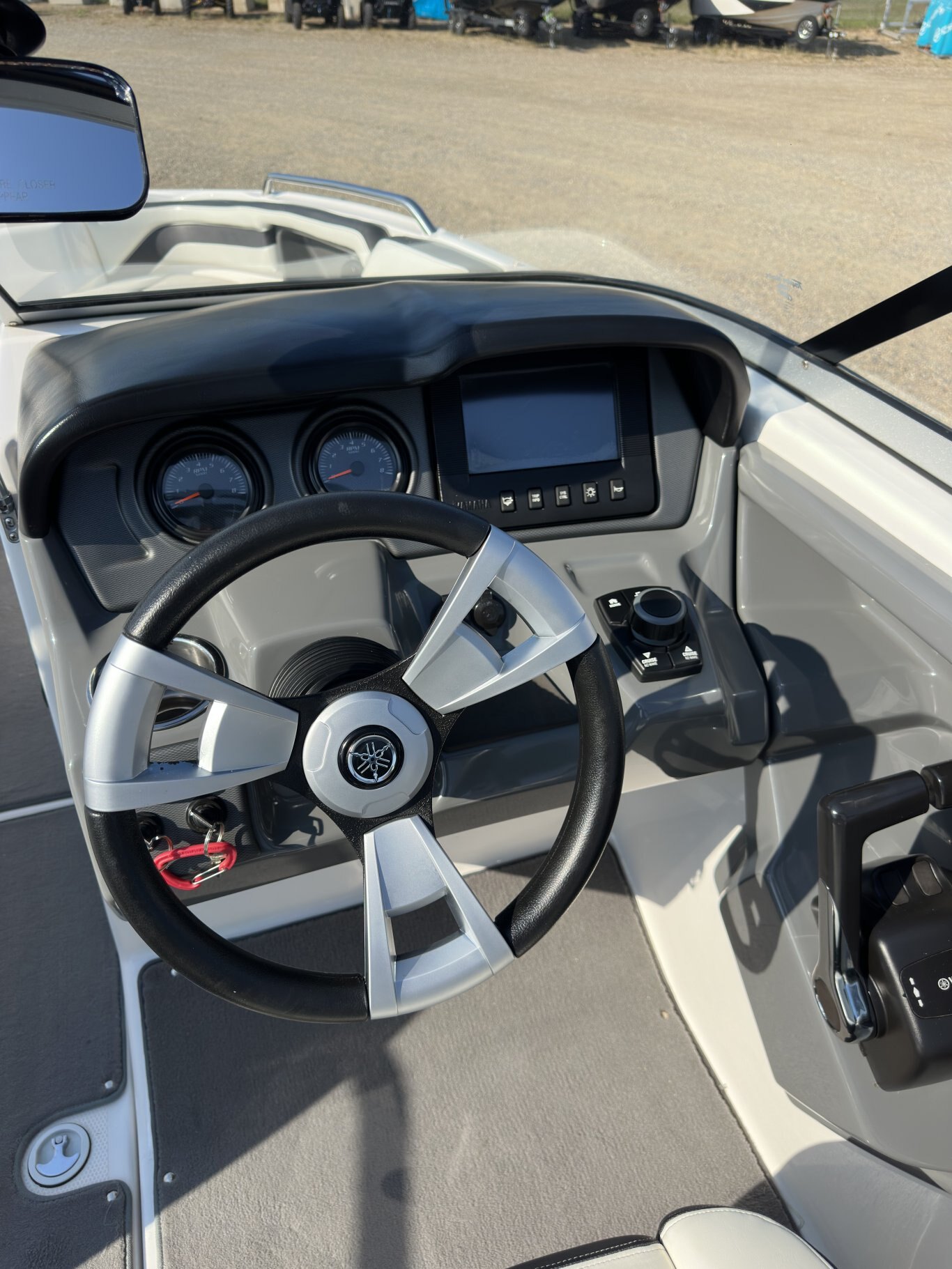

• Dash Display: Connext touch-screen info center with joystick control overlays analog tachometers—handles gauges, GPS, stereo, speed modes, and more

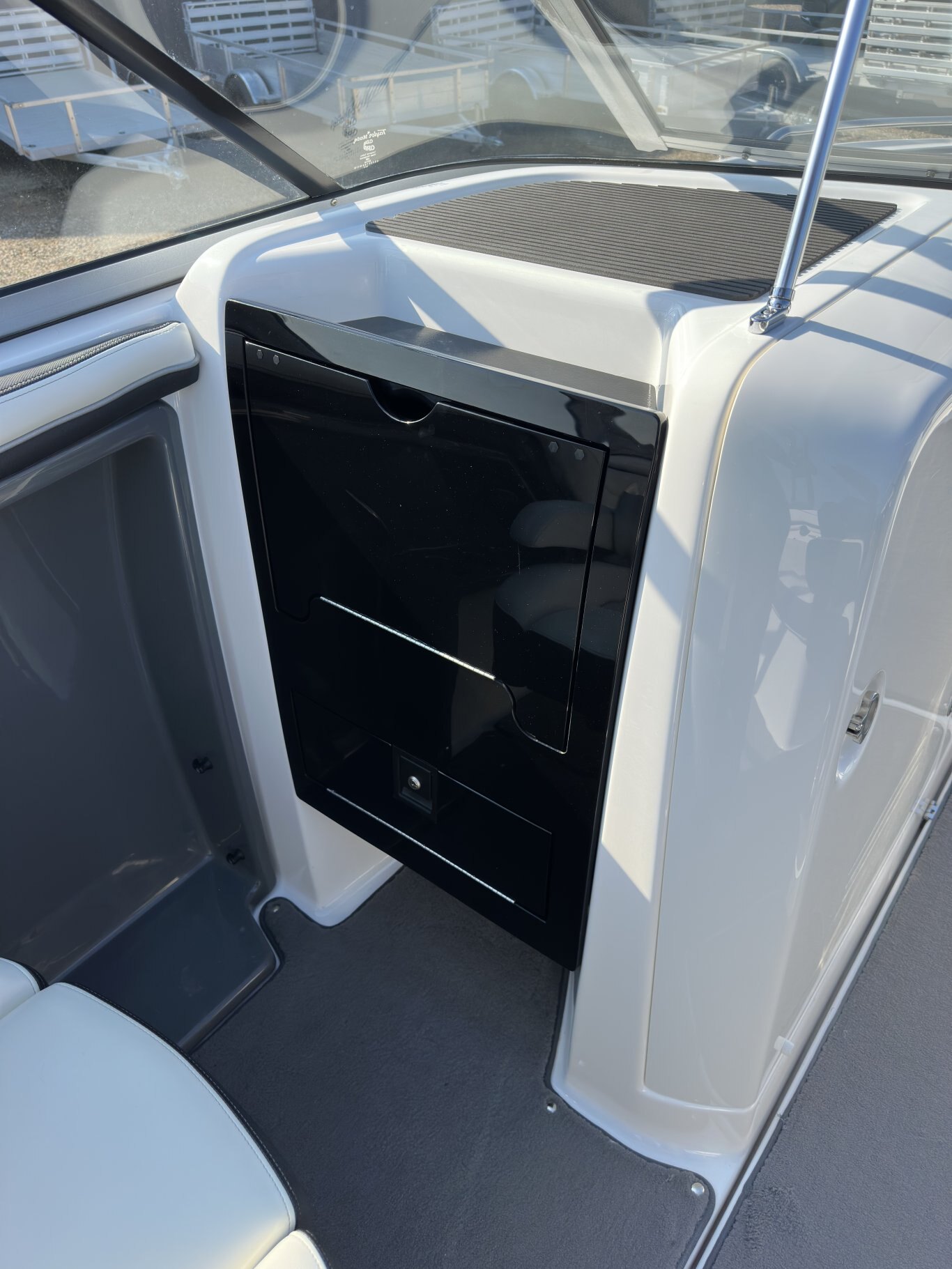

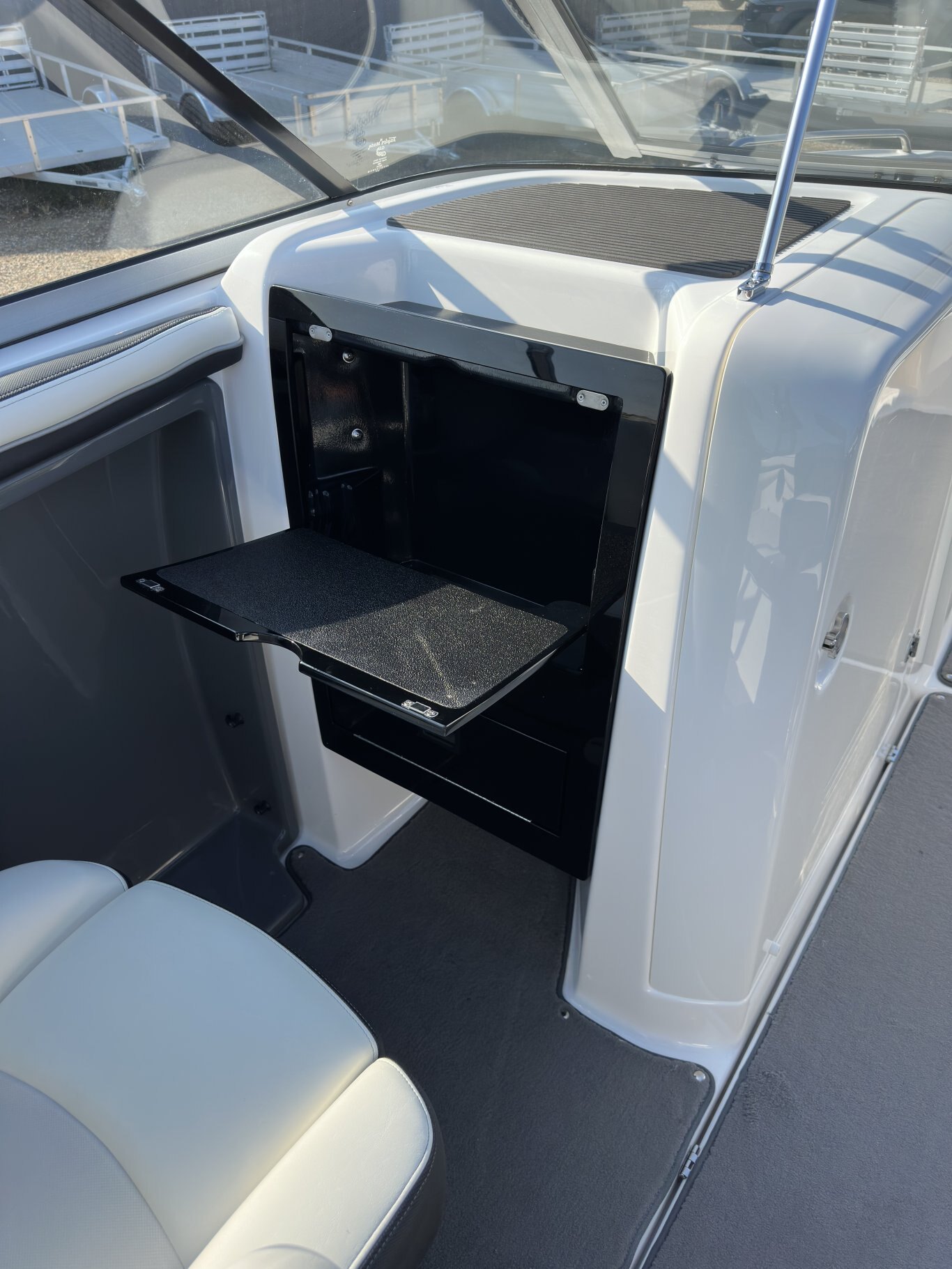

• Features: Includes Cruise Assist, No-Wake Mode, Bluetooth/USB audio, wet storage, enclosed head compartment, multiple seating configurations, accessory lighting, and more
