2025 Yamaha TT-R 230

  • 2025 Yamaha TT R 230
  • 2025 Yamaha TT R 230
  • 2025 Yamaha TT R 230
  • 2025 Yamaha TT R 230
  • 2025 Yamaha TT R 230
  • 2025 Yamaha TT R 230
  • 2025 Yamaha TT R 230
  • 2025 Yamaha TT R 230
  • 2025 Yamaha TT R 230
  • 2025 Yamaha TT R 230
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo  Print
Overview

Easy-to-use. Easy-to-start. Easy-to-maintain. The super-capable TT-R 230 delivers proven performance for riders of all skill levels. The low seat height and smooth, torquey power are perfect for both beginners and experienced riders.

Specifications
Model
TT-R 230
Category Name
Motorcycles
Year
2025
Sale Type
New
Manufacturer
Yamaha
Color
Team Yamaha Blue
Province
Ontario
engine
ENGINE
4-stroke, air-cooled, SOHC, 2-valve, single
FINAL DRIVE
Chain
DISPLACEMENT
223 cc
TRANSMISSION
Constant mesh, 6-speed
FUEL DELIVERY
Teikei Y26P
MAXIMUM TORQUE
1.9 kg-m (13.7 ft-lb)@ 6,500 rpm
BORE AND STROKE
70 x 58mm
COMPRESSION RATIO
9.5:1
IGNITION / STARTING
CDI / Electric Start
chassis
TIRES (REAR)
100/100-18
BRAKES (REAR)
Drum
TIRES (FRONT)
80/100-21
BRAKES (FRONT)
220mm disc / twin piston caliper
SUSPENSION (REAR)
Adjustable link-type Monocross / 220 mm (8.7") wheel travel
SUSPENSION (FRONT)
Adjustable 36 mm fork / 240 mm (9.4") wheel travel
highlights

2025 Yamaha TT R 230LOW MAINTENAINCE ENGINE

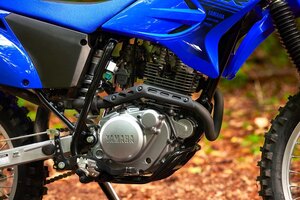

A peppy, air-cooled, 223 cc, SOHC, 2-valve, 4-stroke powerplant produces predictable power aimed at easing both beginner and intermediate riders into the fun and excitement of off-road riding.

2025 Yamaha TT R 230ROBUST COMPACT FRAME

The TT-R230's diamond-type steel frame features a compact, 1,385 mm (54.5") wheelbase to ensure superb manoeuvrability and responsive handling.



key features
  • Convenient, no-hassle electric starting.
  • Proven, 2-valve cylinder head design
  • Automatic cam chain tensioner



critical data
WIDTH
800mm (31.5")
HEIGHT
1,180mm (46.5")
LENGTH
2,065mm (81.3")
COLOUR(S)
Yamaha Racing Blue
WHEELBASE
1,385mm (54.5")
WET WEIGHT
114kg (251 lb)
SEAT HEIGHT
870mm (34.3")
FUEL CAPACITY
8 litres (1.8 imp. gallons)
GROUND CLEARANCE
295mm (11.6")
features & benefits

ENGINE

  • Peppy, air-cooled, 223 cc, SOHC, 2-valve, 4-stroke powerplant. The TT-R 230 is well suited for the advancing intermediate or less experienced full size rider. The TT-R 230 has the ability to tackle the toughest terrain.
  • Convenient, no-hassle electric starting.
  • Proven, 2-valve cylinder head design
    • Easy to adjust traditional rocker arms
    • 150 hour valve adjustment intervals
    Automatic cam chain tensioner.
    • reduces maintenance & mechanical engine noise
  • Teikei Y26P carburetor
    • crisp throttle response & good fuel economy
    • carb mounted choke
    • carb features "electroless" nickel plating on the valve seat & a stainless steel needle valve screw to offset the effects of E10 fuel (10% ethanol fuel).
  • Easy access oil filter & oil drain plug.
  • CDI (capacitor discharge ignition) system.
    • maintenance-free, delivers a strong spark for fast starts & solid engine performance at all rpms
  • WR-style washable foam air filter.
  • Smooth shifting 6-speed transmission with manual clutch.
    • optimized gear ratios for maximum off road fun and versatility
  • Lightweight, upswept exhaust system.
    • cleanable screen-type spark arrestor
    • heat shields in key areas to protect rider

CHASSIS

  • Diamond-type steel frame features a compact, 1,385 mm (54.5") wheelbase to ensure superb manoeuvrability and responsive handling.
  • Rugged box-section steel swingarm features easy-to-use eccentric chain adjusters.
  • 36 mm leading axle front fork offers 240 mm (9.5") of wheel travel
    • confidence-inspiring control over rough terrain
  • Durable fork boots ensure excellent fork seal and stanchion tube protection.
  • Monocross link single shock rear suspension offers 220 mm (8.7") of wheel travel.
    • adjustable spring preload (threaded type, 12 mm of adjustability) allows the rider to tailor suspension to rider weight and terrain.
    • smooth, progressive suspension performance.
  • Front 220 mm disc with twin piston caliper ensures fast, fade-free stopping power.
  • Rear drum brake with easy-to-use wing nut adjuster.
  • 21" front and 18" rear aluminum rims & knobby tires.
    • lower unsprung weight for great suspension and handling performance
    • knobby tires provide excellent traction in the dirt.
  • Low 870 mm (34.3") seat height.
    • helps inspire rider confidence
  • 295 mm (11.6") of ground clearance.
    • serious ground clearance to tackle the tough terrain
  • 8-litre plastic fuel tank.
    • off/on/reserve fuel petcock for peace of mind
    • 1.8 litre reserve capacity
  • Aggressive styling highlights Yamaha's championship-winning YZ racing heritage.
    • rugged plastic body components resist damage in the event of a tip over
    • slim design bodywork allows excellent rider manoeuvrability & mobility

DETAILS

  • "Bar-type" engine protector
  • Long, flat, YZ-style two-tone seat
  • Team Yamaha-inspired colour & graphics.
  • Motocross-style handlebar with reinforcing crossbar
  • Brake & clutch lever boots (rubber covers) help reduce dirt & mud build-up
  • Serrated, folding foot pegs provide excellent grip even in wet or muddy conditions
  • Folding gear shift lever tip & folding rear brake pedal tip help prevent damage in the event of a tip over
  • Heavy-duty "O" ring chain
  • Handlebar mounted push button ignition switch with red indicator light when power is active.
  • E10 (10% ethanol fuel) compatible fuel system components
  • Lightweight, sealed (spill proof) low maintenance battery (battery should be charged during winter storage)
