Case IH Disk Rippers Ecolo-Tiger 875

Call Email
Case IH Disk Rippers Ecolo Tiger 875
Call for Price
Contact Us Get Approved Value a Trade   Get Directions  Print
Download Specs
Overview

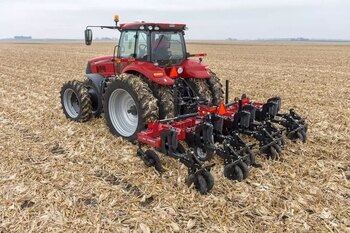

Ecolo-Tiger 875

The most aggressive disk ripper on the market with aggressive disk-cutting power, high underframe clearance, and minimum 36-inch spacing between points.

Optimize Your Seedbed

The Case IH Family of Disk Rippers are engineered to provide the perfect seedbed for your operation. Our disk rippers optimize residue management, soil tilth and seedbed conditioning. Take your operation one step further with Soil Command™.
Specifications
Download Specs
Model
Disk Rippers
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Blade Type
Disk
Shank Spacing
24 in (61 cm)
Rear Blade Type
Rear disk levelers to fill in shank path
Shank Spacing In
24
Blade Diameter In
24
Number Of Shanks
7, 9, 11, 13
Total Weight Lb
14470
Required Horse Power
280 - 600 (209 - 447 kW)
Working Width Ft-in
14ft
Number Of Main Shanks
7
Optional Shank Design
Parabolic, shear bolt
Overall Length Ft-in
33ft 4in
Rear Blade Diameter In
18
Standard Shank Design
Parabolic, spring reset
Shank Trip Clearance In
13
Transport Width Ft-in
16ft
Underframe Clearance In
36.5
Standard Shank Trip Force Lb
3000
Shank Depth Adjustment Method
Single-point depth control, crank
Optional Depth Adjustment Method
AFS Soil Command, tractor console
First Blade Angle Or Gang Angle - Degrees
15
