Bobcat S86-2 Skid-Steer Loader
Photo Gallery
- Location:
- Premier Trailer
Call for Price
Province
New Brunswick
Overview
Specifications
engine
dimensions
literature
performance
key features
instrumentation
hydraulic system
s86-2 at a glance
Documents
Model
S86-2 Skid-Steer Loader
Category Name
Equipment
Year
2027
Sale Type
New
Manufacturer
Bobcat
Fuel Tank
31.6 gal
Overall Width
72 in
Overall Height
83.1 in
Available Attachments
65
Reach @ Maximum Height
33.5 in
Length Without Attachment
120.4 in
Travel Speed - Low (2-Speed)
6.9 mph
Province
New Brunswick
Horsepower
115 hp
Wheelbase
51.3 in
Standard Tires
305 X 419 [12.00 X 16.5]
Standard Bucket
74 in
Height To Hinge Pin
144 in
Length With Standard Bucket
148.9 in
Literature
| Name | Link |
| Brochure | Download |
Tipping Load
7000 lbs
Travel Speed - High (2-Speed)
12.3 mph
KEY FEATURES
|
The Bobcat S86-2 skid-steer loader is engineered for high-production work where lift height, speed and efficiency matter. From material handling to truck loading, every system is designed to help crews move more, work faster and maintain consistent performance. |

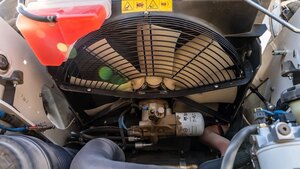

Integrated In-Machine CoolingIndustry-leading integrated in-machine cooling helps maintain peak performance during long workdays, even under load. It is built to support consistent output without overheating when the pace of work stays high. |
Precision Drive SoftwareSelectable Joystick Controls (SJC) with precision drive software deliver smooth motion and faster response for more precise operation. |
Four Drive ModesBalanced, Agile, Dynamic and Charged drive modes let you tailor machine drive response to your working style and the task at hand. |
Redesigned Electrical SystemA redesigned electrical system helps improve reliability in wet and dusty conditions with upgraded sealing, optimized routing and better-protected components. |
Super-Flow HydraulicsOnly the S86-2 skid-steer loader and T86-2 compact track loader offer three hydraulic flow options – standard, high and super flow – setting a new standard for performance with up to 42 gallons per minute to run demanding attachments. |
Jobsite CompanionAvailable in the advanced package, Jobsite Companion adds voice-activated machine functions, automated attachment settings and real-time job insights. |
Bobcat Sense Detection SystemsSelect either Rear Object Detection & Avoidance to detect objects behind the machine or 360 People Detection to detect people within a 360-degree field of view. |
Bobcat View Camera SystemsStandard rear or optional broad‑area camera systems provide additional views when backing up, working in tight spaces and operating near obstacles. |
Hourmeter
Fuel Gauge
Engine Air Filter
Replaceable dry paper cartridge with separate safety element
Auxiliary Std Flow
23 gpm
Aux System Pressure
3500 psi
System Relief @ Quick Couplers
3500 psi
S86-2 AT A GLANCE
|
Documents
Related Products
-
Bobcat S64-2 Skid-Steer Loader -
Bobcat S66-2 Skid-Steer Loader -
Bobcat S76-2 Skid-Steer Loader -
Bobcat S70 Skid-Steer Loader -
Bobcat S450 Skid-Steer Loader -
Bobcat S590 Skid-Steer Loader -
Bobcat S770 Skid-Steer Loader -
Bobcat T86-2 Compact Track Loader -
Bobcat T64-2 Compact Track Loader -
Bobcat T66-2 Compact Track Loader
Resources
The Bobcat® Pro S86-2 skid-steer loader is built for the most demanding environments like commercial construction, roadwork, snow removal and more. Excelling on firm or compacted surfaces, it combines maximum lift height, powerful hydraulics, premium cooling and advanced control in a compact machine.
