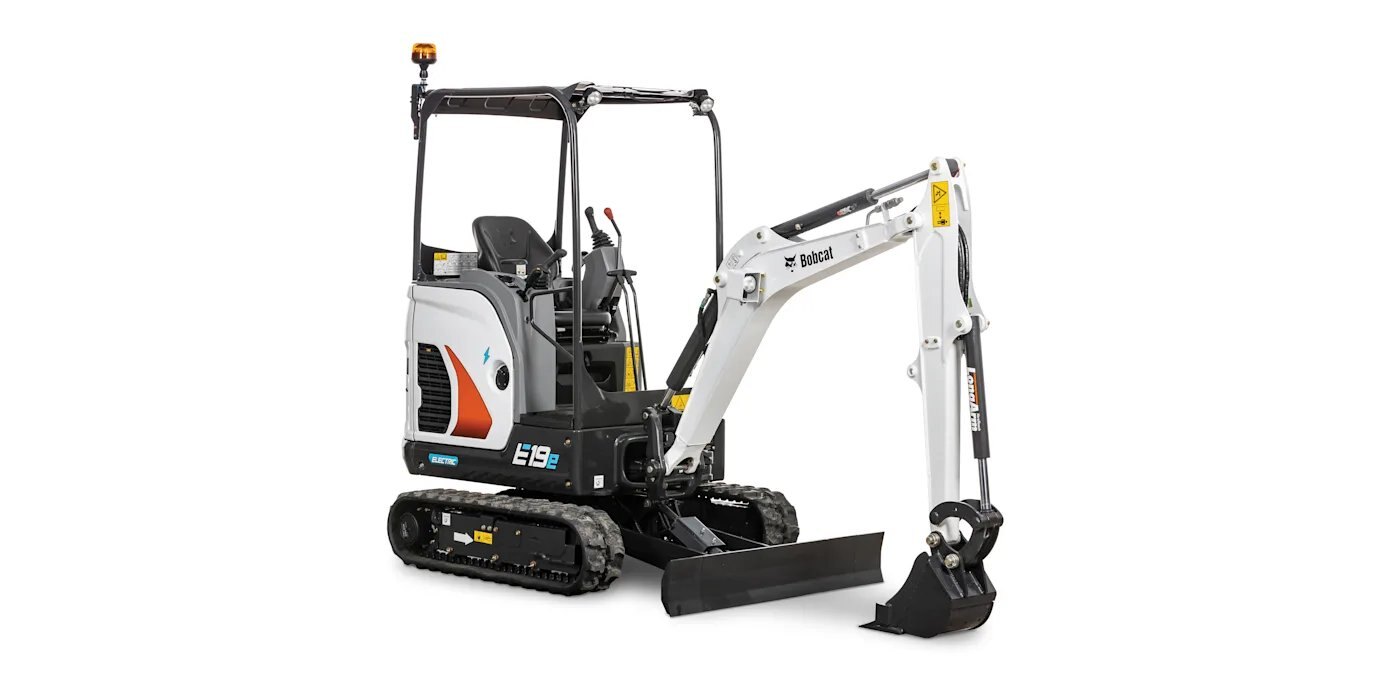

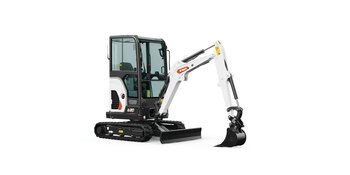

Bobcat E19e Battery-Electric Compact Excavator

Call for Price
Province
New Brunswick
Overview

Featuring state-of-the-art lithium-ion battery technology, the conventional tail-swing E19e provides the same power as its diesel-powered equivalents, with near-instantaneous torque.

  • Two-speed travel with auto shift

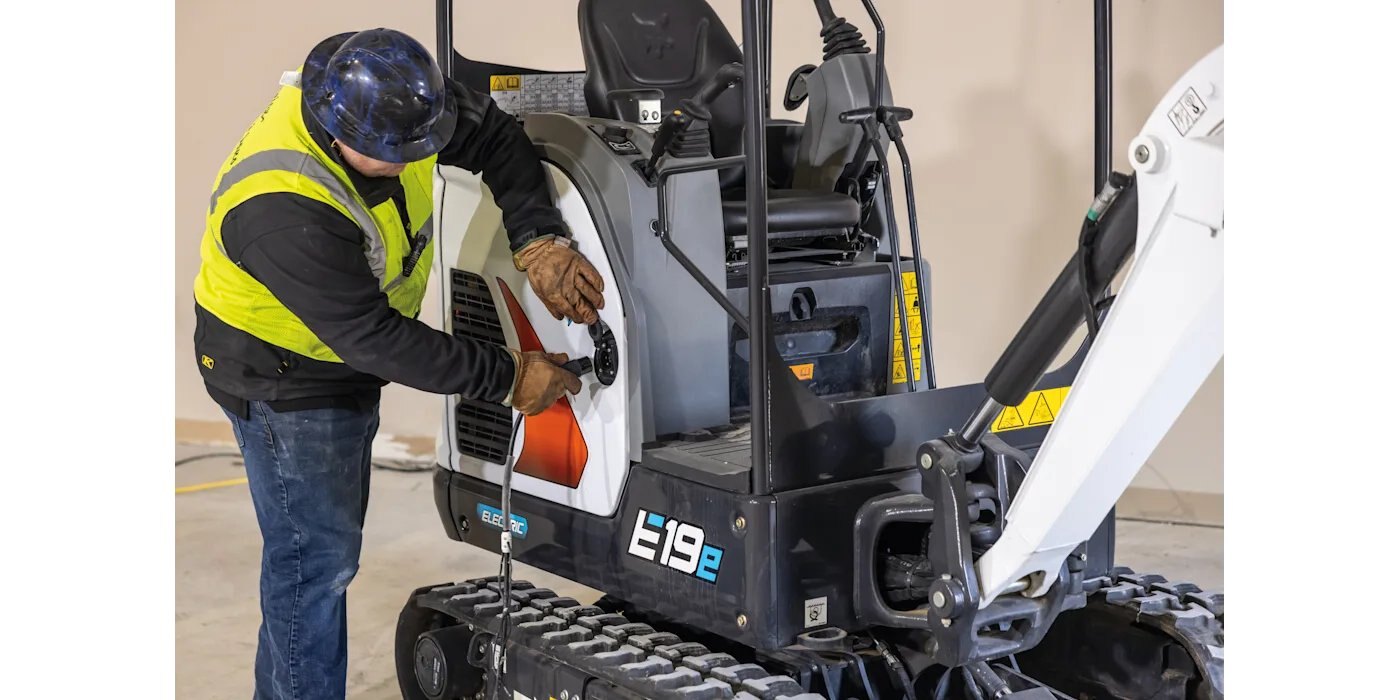

  • On-board charger accepts a common, 120-volt electrical connection
  • Standard long arm  
  •  Retractable undercarriage and retractable blade
  • Auxiliary hydraulics with two-way flow
  • Optional off-board, fast-charge system

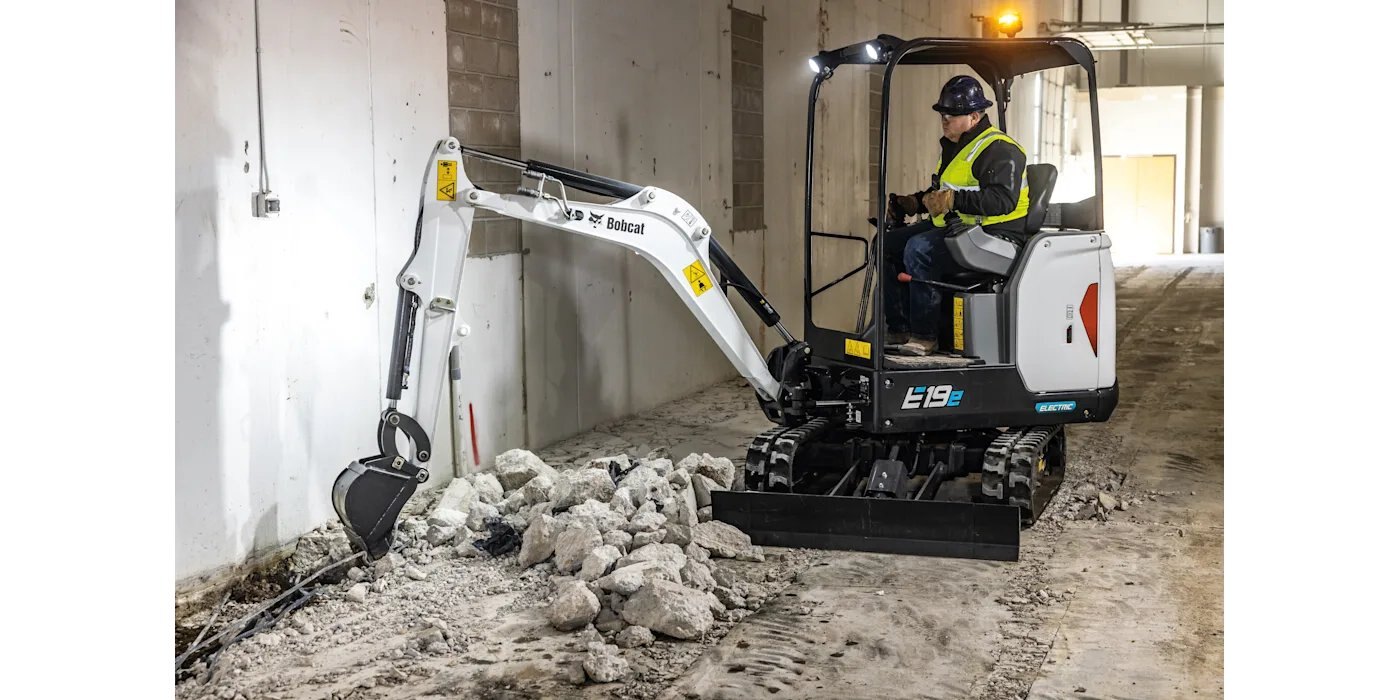

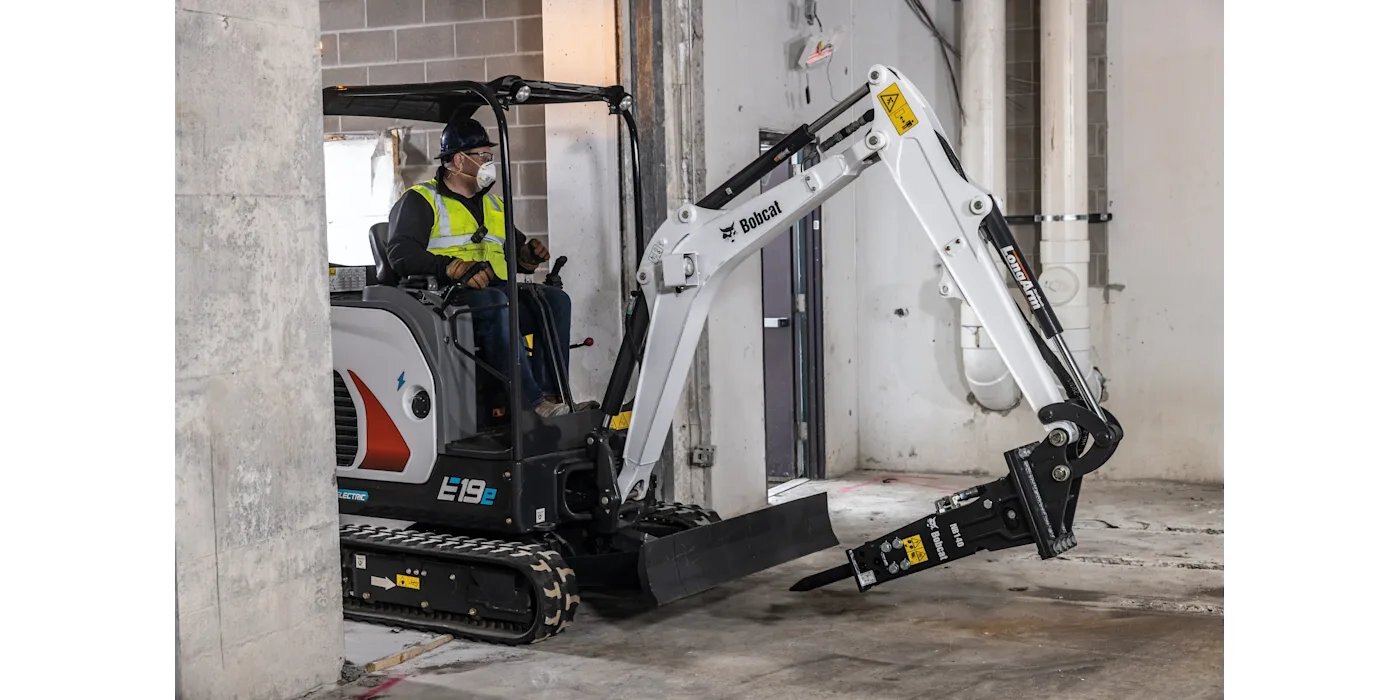

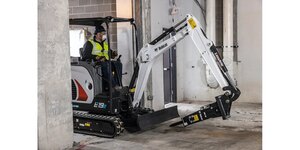

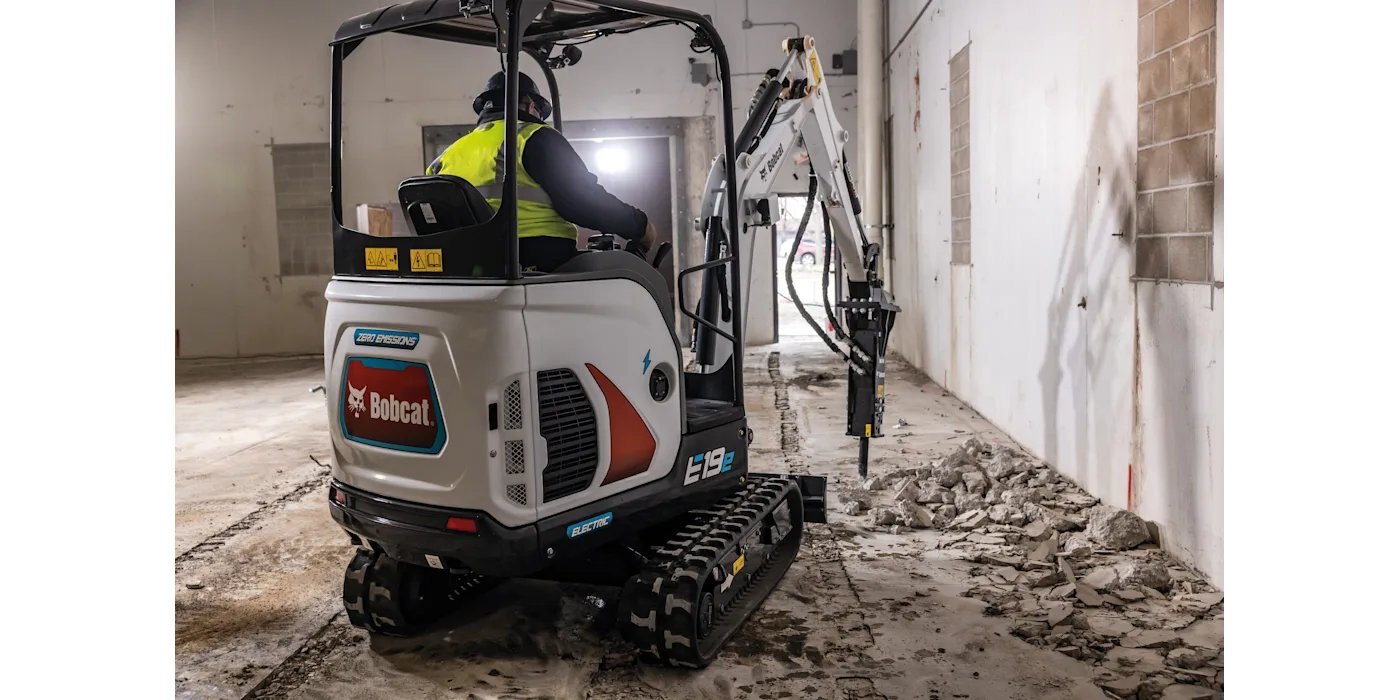

  • With a small footprint, zero emissions and an in-track swing frame, the E19e can work on small outdoor jobsites as well as indoors, where the alternative is manual labor.
  • The E19e is powered by three lithium-ion batteries that provide a total capacity of 17.28 kWh. The batteries deliver high-energy density, long service life and require no routine maintenance.
  • The standard long-arm gives operators added reach and dig depth, while the increased cylinder size offers excellent breakout forces and lifting ability. Hydraulically retract the undercarriage to just 39-inches wide for access to small job sites - both indoors and out. Then return the undercarriage to its 54-inch stance for a wider footprint and leading performance. The blade also can be retracted at each side for greater access to jobsites.
Model
E19e
Category Name
Equipment
Year
2027
Sale Type
New
Manufacturer
Bobcat
Province
New Brunswick
Width
38.6 in
Length
150.1 in
Height
90.5 in
Height With Operator Cab
90.5 in
Overall Length In Travel Position
150.1 in
Name Link
Brochure                  Download
Brochure                  Download
Lift Radius
118 in
Weight Class
2 t
Max Dump Height
101 in
Arm Digging Force
2086 lbf
Travel Speed - Low
1.1 mph
Rated Lift Capacity
1028 lbs
Travel Speed - High
2.3 mph
Maximum Reach At Ground Level
165.9 in
Auxiliary Pressure
2610 psi
Auxiliary Std Flow
6.4 gpm
Width
38.6 in
Battery Type
Lithium Ion
System Voltage
51.8 v
Operating Weight
4212 lbs
Maximum Dig Depth
101 in
Gross Battery Capacity
17.3 kwh
Maximum Reach At Ground Level
165.9 in
