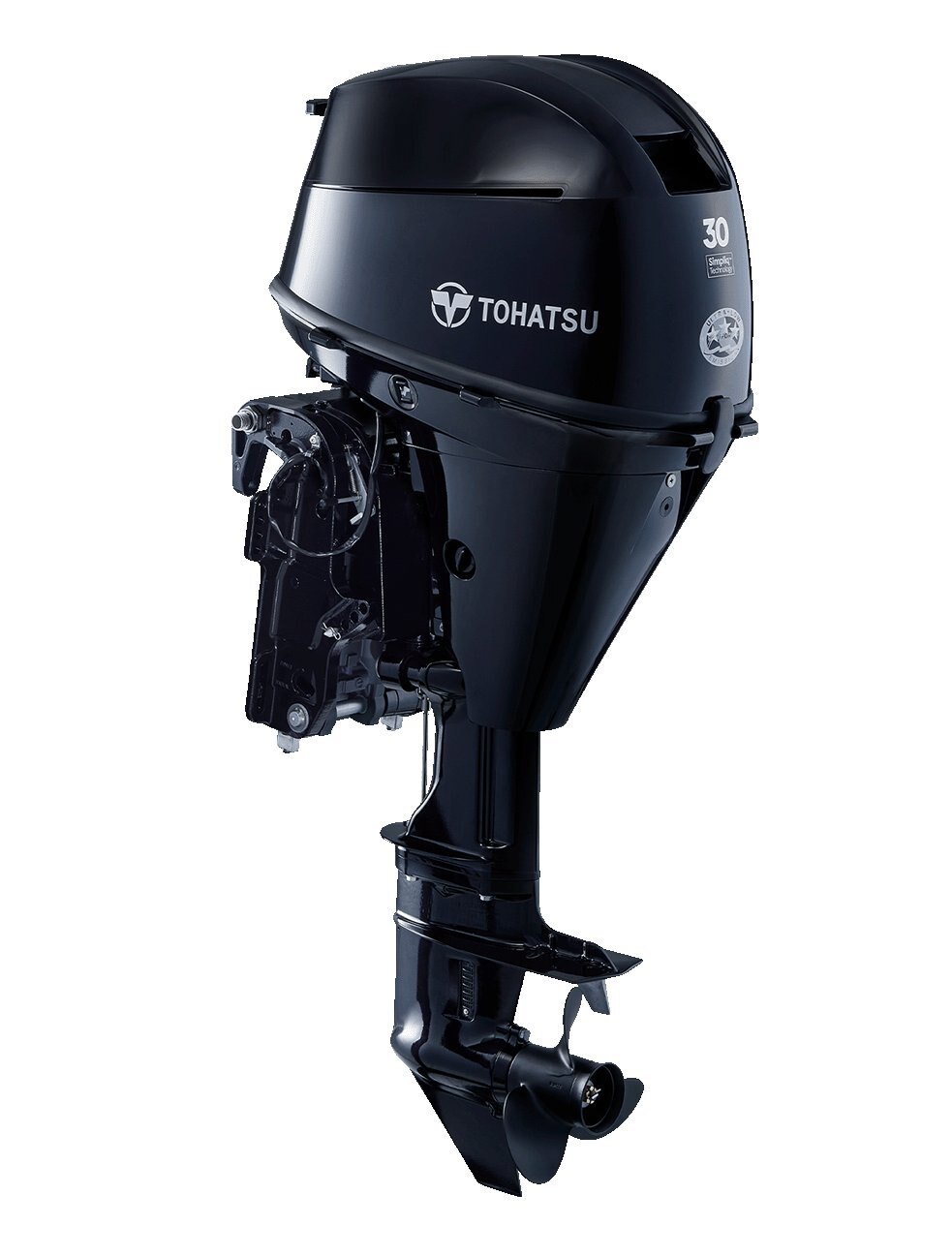

Tohatsu MFS30D Aqua Marine Blue

Call Email

Location:
DM Boat Sales Inc

Call for Price

Contact Us Insurance Quote Get Approved Value a Trade Get Directions Get Directions Print

Province

Ontario

Big performance in a compact package. The Tohatsu 30hp 4-Stroke EFI is built for boaters who want lightweight handling, dependable power, and the flexibility to match their boat’s needs.

Available in a variety of configurations for inflatable, aluminum, and fiberglass boats, the MFS30D delivers smooth, efficient performance with a design focused on reliability and ease of use. Its lightweight construction and proven 4-stroke EFI technology make it the smart choice for a wide range of boating adventures.

Choose the MFS30D and experience compact power without compromise

Model

MFS30D

Category Name

Outboard Engines

Sale Type

Manufacturer

Tohatsu

Color

Aqua Marine Blue

Unleaded Gasoline (87 Octane)

Engine

4 Stroke 3 Cylinder

Output

30 hp (22.1 kw)

Weight*

128 lbs. (58 kg)

Starting

Electric or Manual

Fuel Tank

6.6 US Gal. (25 L) Separate Fuel Tank

Gear Ratio

2.17:1 (12:26)

Control Type

Remote Control or Tiller Handle

Displacement

500 cc (30.5 cu.in.)

Oil Capacity

1.8 qt. (1.7L)

Bore X Stroke

61 x 57 mm (2.4 x 2.25 in)

Max. RPM Range

5,500 - 6,500

Fuel Consumption At W.O.T.

2.7 gal/hr (10.3 L/hr)

Province

Ontario

benefits

Tohatsu 30 hp 4-Stroke Benefits

Versatile and lightest 3 cylinder 30 hp
All new sleek design with two color options: Aqua Marine Blue and Beluga White
Available in variety of model-types; multiple shaft lengths, manual or electric start, tiller or remote steering, and manual tilt or power tilt and trim
Best in class power-to-weight ratio provides excellent performance for all styles of boats from light weight to heavy weight
Advanced cross-flow induction for smooth operation
Ultra Low emission, EPA and CARB approved
5-year limited recreational warranty and 2-year limited commercial warranty

High Performance and Easy Operation

Optimized gear ratio 2.17:1 gives you better low end torque and the ability to turn a higher pitch prop for better top end performance
Battery-less manual start Electronic Fuel Injection 4-stroke
Digital CD ignition system for quicker starts
High output 17.5 amp alternator
Adjustable steering friction and trim tab for reducing steering effort
Manual tilt models are equipped with shallow water drive and 6 tilt positions*
Power trim and tilt*

Fundamentals for User Convenience and Reliability

Built in fresh water flush system on drive shaft housing for easy access
No-mess oil filter drip pan located underneath the engine oil filter
Tool-free clear fuel filter with floating indicator ring provides detection of water in the fuel system and allows quick and easy service
Through-the-prop exhaust for a quieter ride
Thermostatically controlled cooling system for consistent engine temperature
Stainless steel water pump housing liner for outstanding durability
High grade marine aluminum alloy that provides the ultimate protection against corrosion
Zinc coating on internal water passages for superior corrosion resistance
6.6 gallon (25 liter) fuel tank including fuel fittings and fuel line standard on certain models*
Wide variety of propeller options available

Warning & Protection

Overheat warning (audible and visual)
Low oil pressure warning (audible and visual)
Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
Start-in-gear protection for safer engine starting
Over-rev. limiter (audible and visual)

features

Steering Options

Unique to the MFS25/30D, we have redesigned the tiller handle to include a stop switch, a four-step trolling speed control system from 750 RPM to 1050 RPM, forward - neutral - reverse shifter, throttle friction adjustment, and electric start button on certain models. Tohatsu’s multi-function tiller handle is also available for multiple model options. Both standard and multi-function tiller handles have trolling speed control feature. Remote control models are also available.

Multi-function tiller handle with height adjustment

The multi-function tiller handle is equipped with 3-position height adjustment with optional accessory to provide an additional 4-position height adjustment.

17.5 amp high-output charging system

The electric start models include the best in class 17.5 amp high-output charging system. This is achieved by applying stronger magnets on the magneto and a water-cooled rectifier. These improvements produce the highest alternator output without increasing weight.

Optimum engine mount locations

We have repositioned the engine mount locations and optimized the distance between the upper and lower engine mounts by bringing the upper mount and lower mount forward from the center of driveshaft. Our revamped design reduces vibration and increases maneuverability for a better boating experience.

Minimal water drag gear case

Tohatsu’s newly designed gear case has been given a more torpedo-like shape for optimal hydrodynamic flow, reducing water drag and improving performance - from planing to top end speed. A gear ratio of 2.17:1 optimizes low end torque and the ability to turn a wider variety of propellers for many boating applications.

Newly designed flywheel

The newly designed flywheel creates airflow inside the cowling. This improves the internal air circulation and reduces the temperature of electrical components to maximize reliability.

Whole new intake manifold

The intake manifold has been completely redesigned with resin to reduce weight by 48%.

Additional auxiliary water intake port

The MFS25/30D(W) gear case includes an additional auxiliary water intake port, providing consistent cooling water circulation. This allows the cooling water come up to cool the engine even if the primary water inlet were covered by marine debris.
