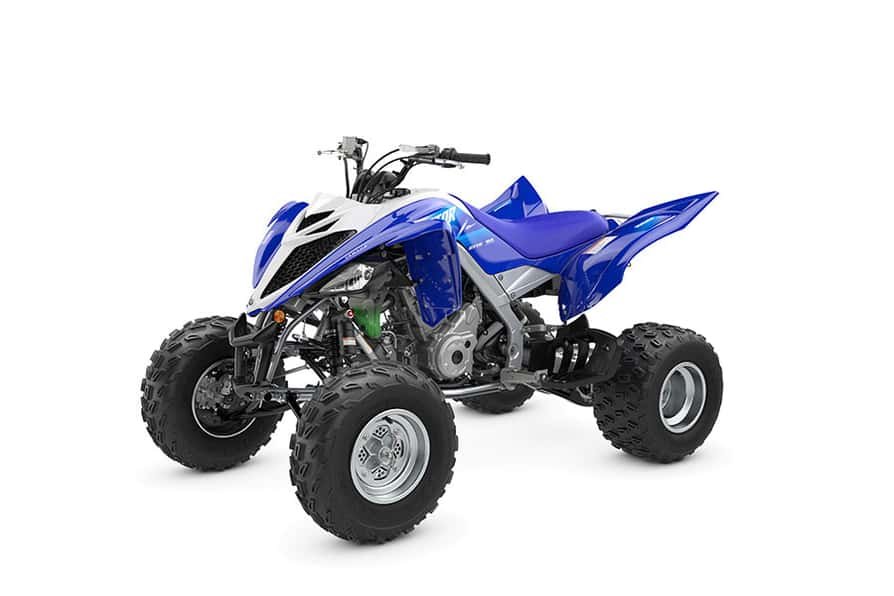

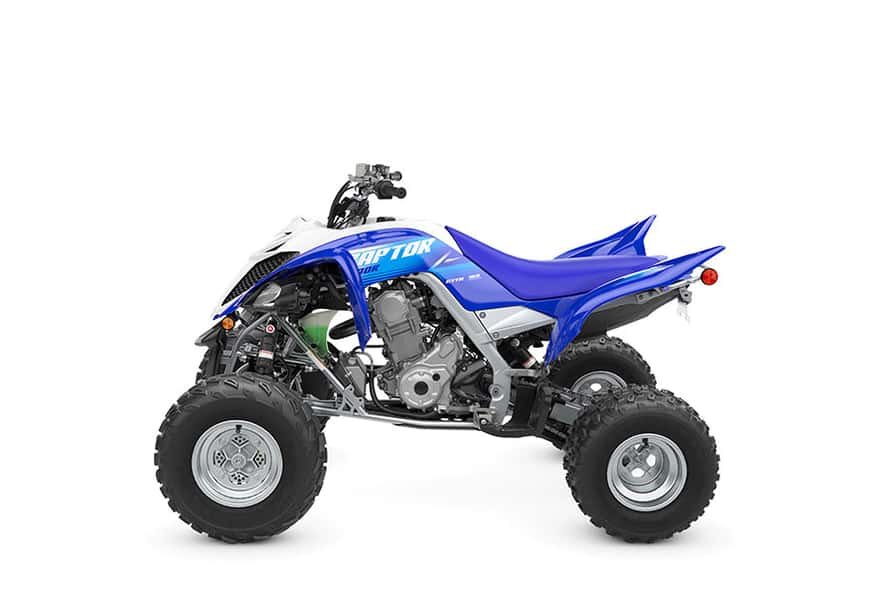

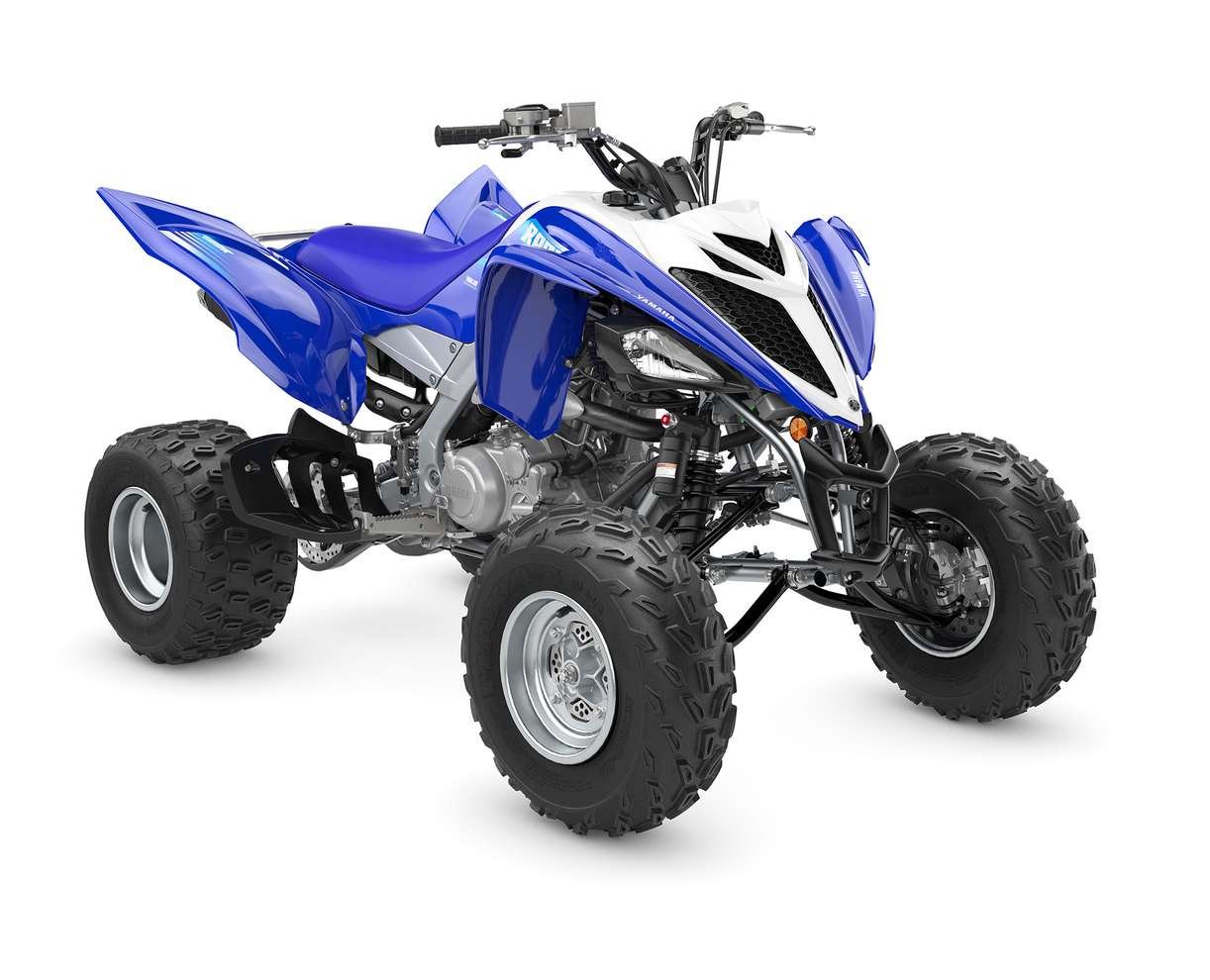

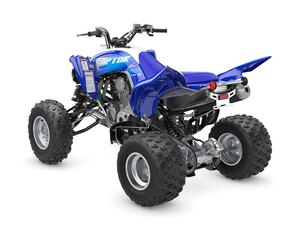

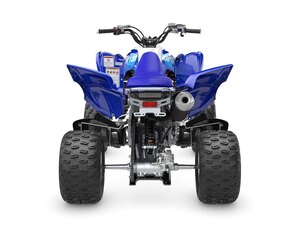

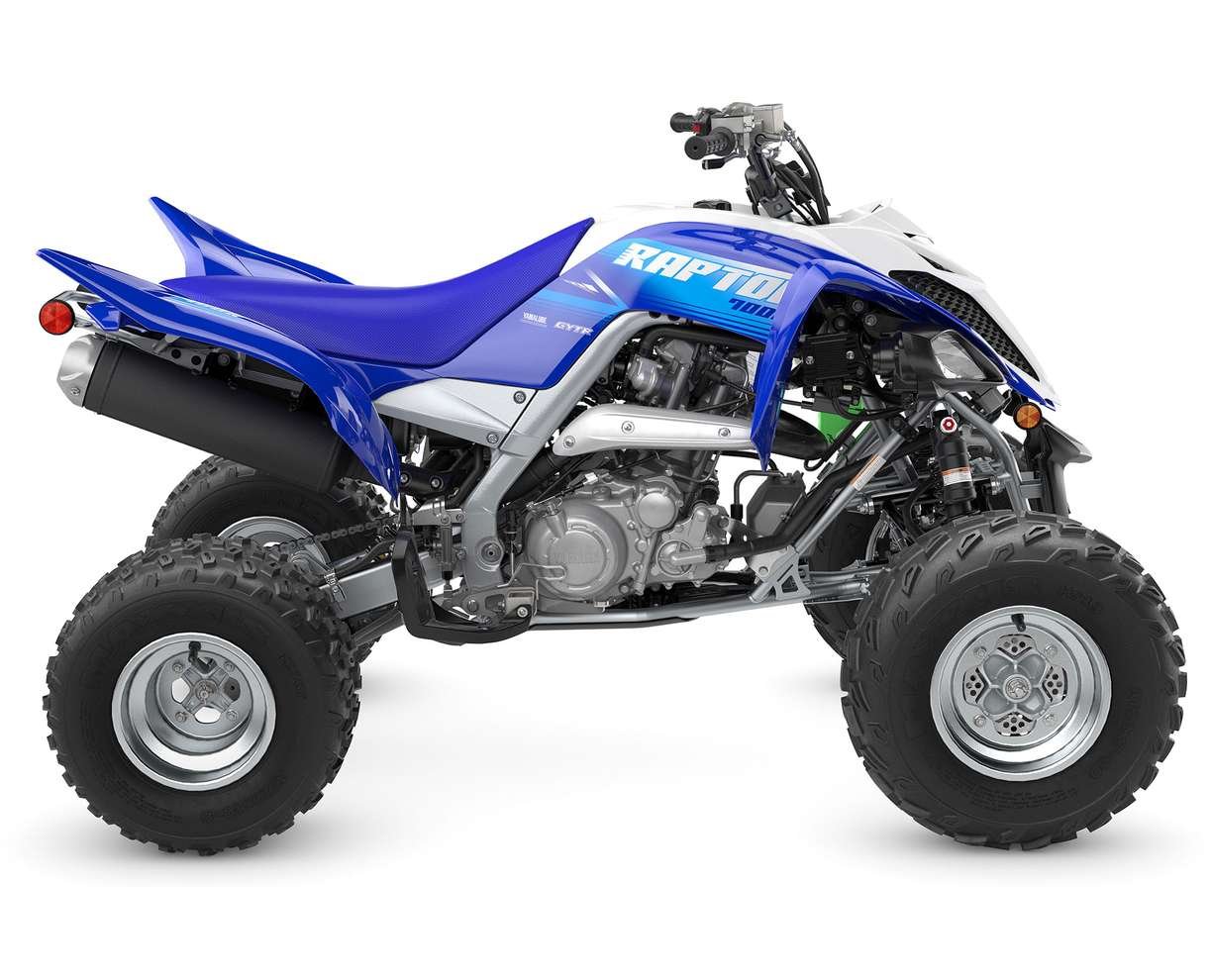

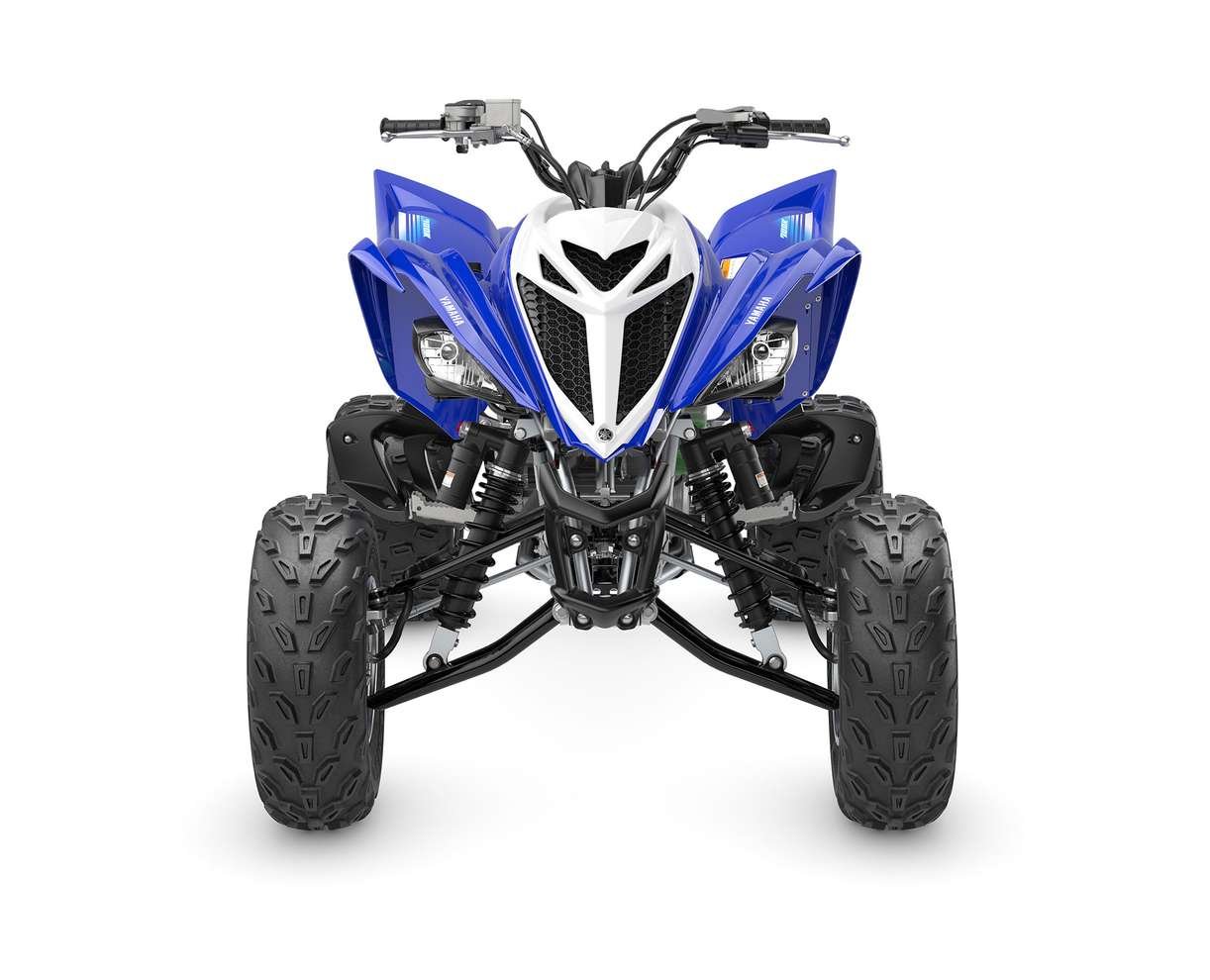

2027 Yamaha Raptor 700R Team Yamaha Blue

Name: 2027 Yamaha Raptor 700R Team Yamaha Blue
Brand: Yamaha

Call Email

CURRENT PROMOTIONS

Call for Price

Contact Us Insurance Quote Get Approved Value a Trade Get Directions Get Directions Print

Province

Ontario

Overview

THE ULTIMATE SPORT ATV. Unmatched big-bore performance, superior comfort, and timeless style define the best-selling Sport ATV as the benchmark.

Specifications

Model

Raptor

Category Name

ATVs

Year

2027

Sale Type

New

Manufacturer

Yamaha

Color

Team Yamaha Blue

Province

Ontario

engine

ENGINE

Liquid cooled, SOHC, 4-valve, single

Ignition

TCI: Transistor Controlled Ignition

Starting

Electric

FINAL DRIVE

X-ring chain; 2WD

LUBRICATION

Dry sump

DISPLACEMENT

686cc

TRANSMISSION

5-speed with reverse; wet multiplate clutch

FUEL DELIVERY

Yamaha Fuel Injection (YFI), 44mm

BORE AND STROKE

102 x 84mm

COMPRESSION RATIO

10.0:1

chassis

TIRES (REAR)

Maxxis, AT20 x 10-9

BRAKES (REAR)

Single 200 mm disc / twin piston caliper

TIRES (FRONT)

Maxxis, AT22 x 7-10

BRAKES (FRONT)

Dual 161 mm discs / twin piston calipers

SUSPENSION (REAR)

Cast aluminum swingarm with piggyback high/low-speed compression, rebound and threaded preload adjustment, 257 mm (10.1") travel

SUSPENSION (FRONT)

Independent double wishbone with piggyback high/low-speed compression, rebound and threaded preload adjustment, 231 mm (9.1") travel

highlights

Aggressive Style

Sharp, aggressive styling gives the Raptor 700R the menacing looks its performance demands. The Raptor 700R is ready to conquer dunes or trails.

Big-Bore Power

Powered by the most potent 686cc, liquid-cooled, fuel-injected Raptor engine ever built, this big-bore Sport ATV delivers big torque throughout its rpm range—right off idle, through a fat mid-range and into a monstrous top-end.

Advanced Chassis

Head-turning power and a lightweight chassis come standard on the Raptor 700R. A hybrid steel-aluminum frame, Controlled-Fill aluminum sub-frame, and cast aluminum swingarm work together to produce a rigid structure and the lightest ATV in its class, without sacrificing handling or durability.

Rider-Friendly Features

A thick, comfortable seat delivers excellent ride comfort, while dual counter balancers, electric start, and reverse gear add next-level quality and convenience on the trail. When it's time to push the limits, the big-bore Raptor 700R rises to the occasion.

Advanced Suspension

The YFZ-inspired handling of the Raptor 700R provides a thrilling experience traversing the woods or dunes. With 9.1 inches of front travel and 10.1 inches in the rear, trail bumps fade away while the rider stays firmly in command. Power, precise handling, and a capable suspension make this machine ready to ride all day, every day.

key features

Powerful 686cc, liquid-cooled, fuel-injected engine
Lightweight hybrid steel aluminum frame
Long A-arm front suspension / Swingarm rear suspension
YZ-Style piggyback shocks
Race-bred five-speed transmission with reverse
Sporty ergonomics with YZ-Style seat
Lightweight aluminum wheels wrapped in Maxxis® tires
Electric starter
Yamaha Racing Blue graphics

critical data

WIDTH

1,155 mm (45.5")

HEIGHT

1,115 mm (43.9")

LENGTH

1,845mm (72.6")

Warranty

6 months (unlimited mileage)

Colour(s)

Team Yamaha Blue

WHEELBASE

1,280mm (50.4")

WET WEIGHT

191kg (422 lb)

SEAT HEIGHT

830 mm (32.7")

FUEL CAPACITY

11 litres

Maximum Ground Clearance

113mm (4.4") rear sprocket protector / 240 mm (9.4") engine

features & benefits

ENGINE

Big Bore Power
- Powered by our most potent 686cc, liquid-cooled, fuel-injected Raptor engine ever, this big bore sport ATV produces big torque right off idle, transitioning into a fat mid-range, and monstrous top-end.
Advanced Fuel Injection
- The Yamaha Fuel Injection (YFI) offers consistent and excellent engine performance in a wide range of conditions, elevations and temperatures.
Digital Ignition
- The digital TCI with 32-bit electronic control unit controls fuel injection and ignition systems for consistent performance and fantastic throttle response.
Electric Starter
- Reliable push-button electric start in any gear adds extra convenience.
Robust Transmission
- Race-bred five-speed transmission with reverse, along with the Raptor 700R’s monstrous powerband, means there’s a choice of gears in just about all situations. YZ-spec ratchet shifter ensures smooth, resistance-free shifting under power while the heavy-duty clutch features a sturdy basket and plates designed to harness the power.
Excellent Serviceability
- Easy-to-reach oil filter and tool-free air filter provide added convenience.

Chassis/Suspension

High-Tech Chassis
- The state-of-the-art chassis combines a steel front section with a YZ-style piggyback rear shock that gives 10.1-inch wheel travel along with preload adjustment.
Advanced Suspension
- YZ-style piggyback shocks are fully adjustable with high- and low-speed compression adjustability for maximum sport versatility along with preload and rebound adjustment. Front wheel travel is a plush 9.1 inches while the rear shock provides 10.1 inches of wheel travel.
Powerful Brakes
- Twin aluminum-piston front disc brakes deliver tremendous stopping power. Discs are drilled, which helps reduce unsprung weight for excellent suspension compliance, with an additional twin-piston rear brake for maximum stopping power.
Aggressive Maxxis® Tires
- High-performance front 22x10-9 and 20x10-9 rear Maxxis® tires with a specially designed tread pattern deliver superb, class-leading traction for razor-sharp handling in a variety of terrain and conditions.
Lightweight Wheels
- Lightweight aluminum wheels help enhance suspension performance by reducing unsprung weight.
Wide Foot Pegs
- Race-inspired 45mm serrated foot pegs provide excellent boot traction.
Strong Frame
- The Controlled-Fill aluminum subframe and composite front grab bar are both light yet strong.

Additional Features

Sporty Ergonomics
- The long, YZ-style seat allows maximum rider comfort and movement with superb sport-riding ergonomics.
High Visibility Lighting
- Multireflector 30-watt Krypton headlights that are set back in the front cowl add the perfect, no-compromises sporting accent, and an LED taillight provides great visibility.
Large Fuel Tank
- Large-capacity, 11 litre fuel tank and Yamaha Fuel Injection (YFI) mean more time on the trail between fill-ups.
Ergonomic Controls
- Thumb throttle lever has a smooth shape for a feel riders will appreciate, creating less fatigue at the end of the day while the handlebar-mounted flip-type parking brake lever is simple to use
Yamaha Diagnostic Tool
- For improved serviceability, the Raptor 700R is Yamaha Diagnostic Tool-ready.
