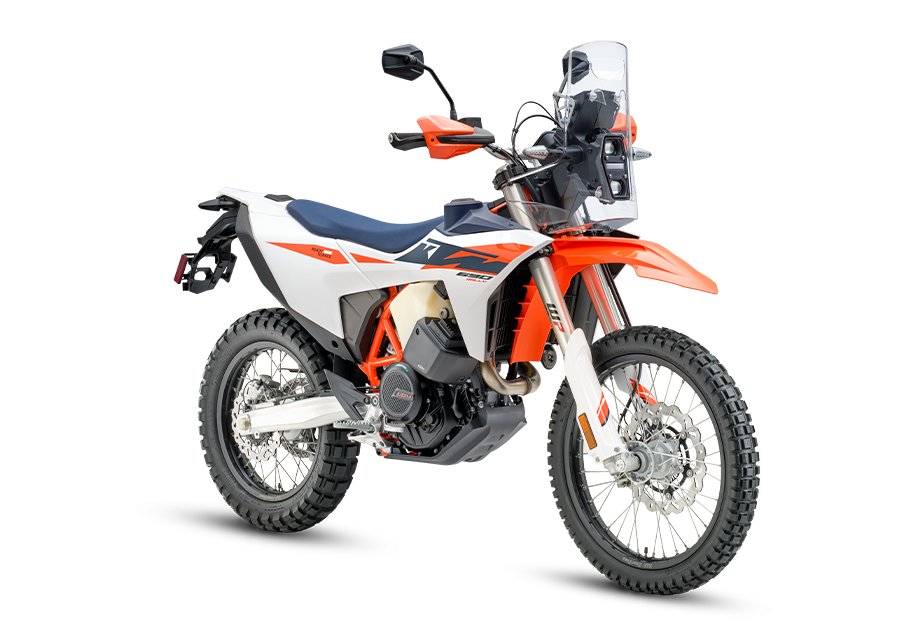

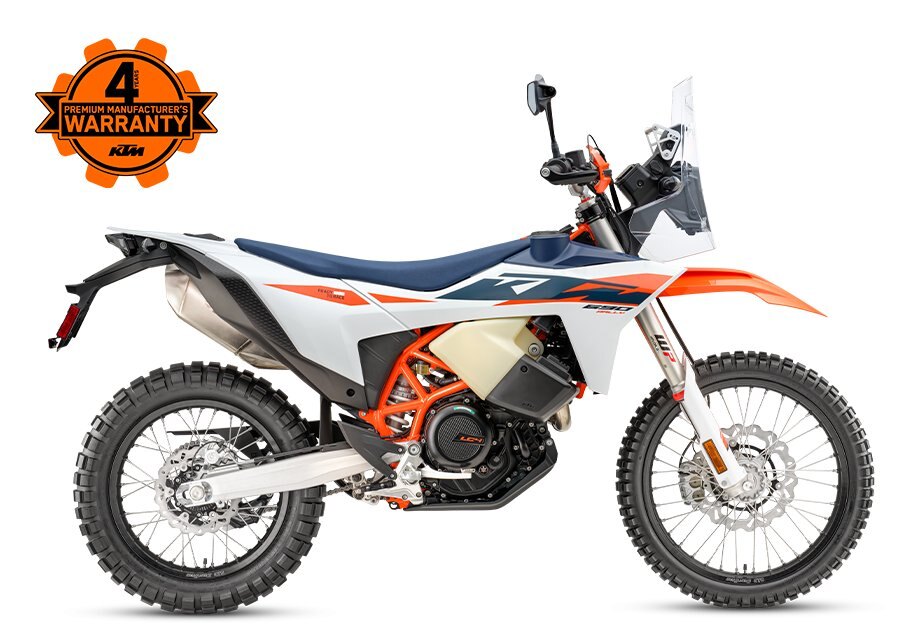

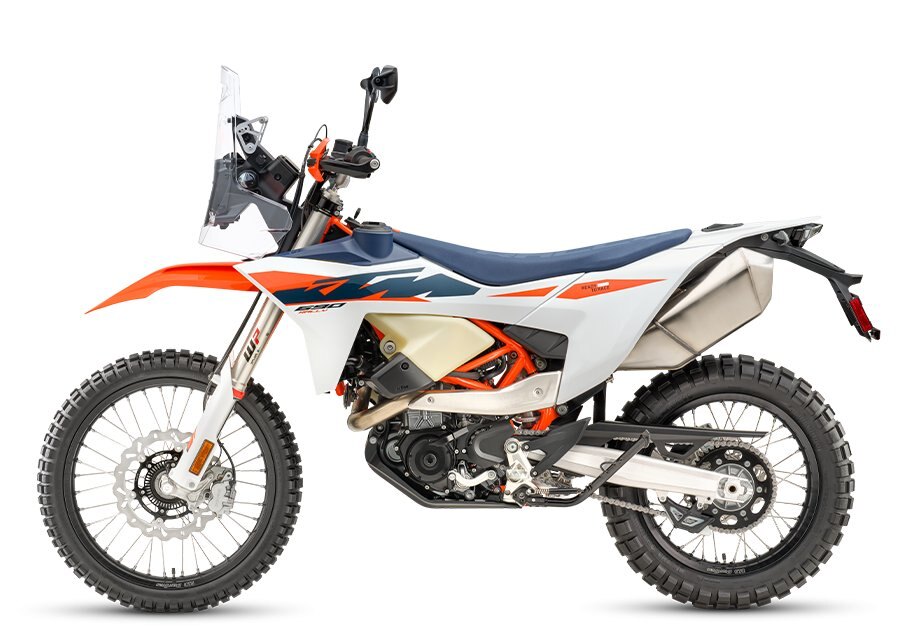

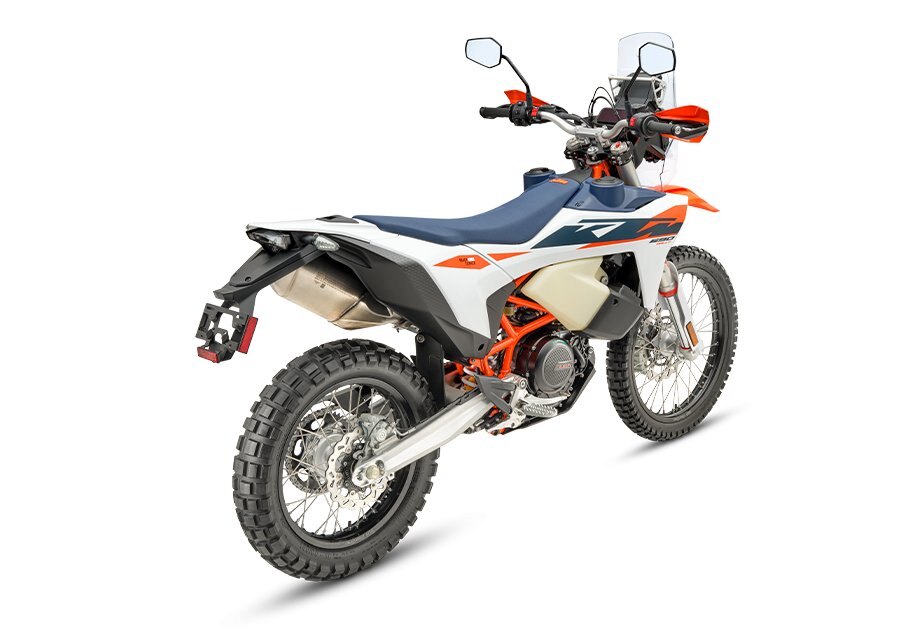

2027 KTM 690 RALLY

Call Email
  • 2027 KTM 690 RALLY
  • 2027 KTM 690 RALLY
  • 2027 KTM 690 RALLY
  • 2027 KTM 690 RALLY
  • 2027 KTM 690 RALLY
  • 2027 KTM 690 RALLY
  • 2027 KTM 690 RALLY
  • 2027 KTM 690 RALLY
  • 2027 KTM 690 RALLY
  • 2027 KTM 690 RALLY
Call for Price
Contact Us Get Approved Value a Trade   Get Directions  Print
Province
Ontario
Overview

GO OUT. MEET YOURSELF.

The KTM 690 RALLY is built for riders who go beyond the familiar. Designed for long-distance off-road travel and Rally Raid-inspired performance, it delivers the range, control, and capability to push deeper into the unknown.
Model
Adventure
Category Name
Motorcycles
Year
2027
Sale Type
New
Manufacturer
KTM
Province
Ontario

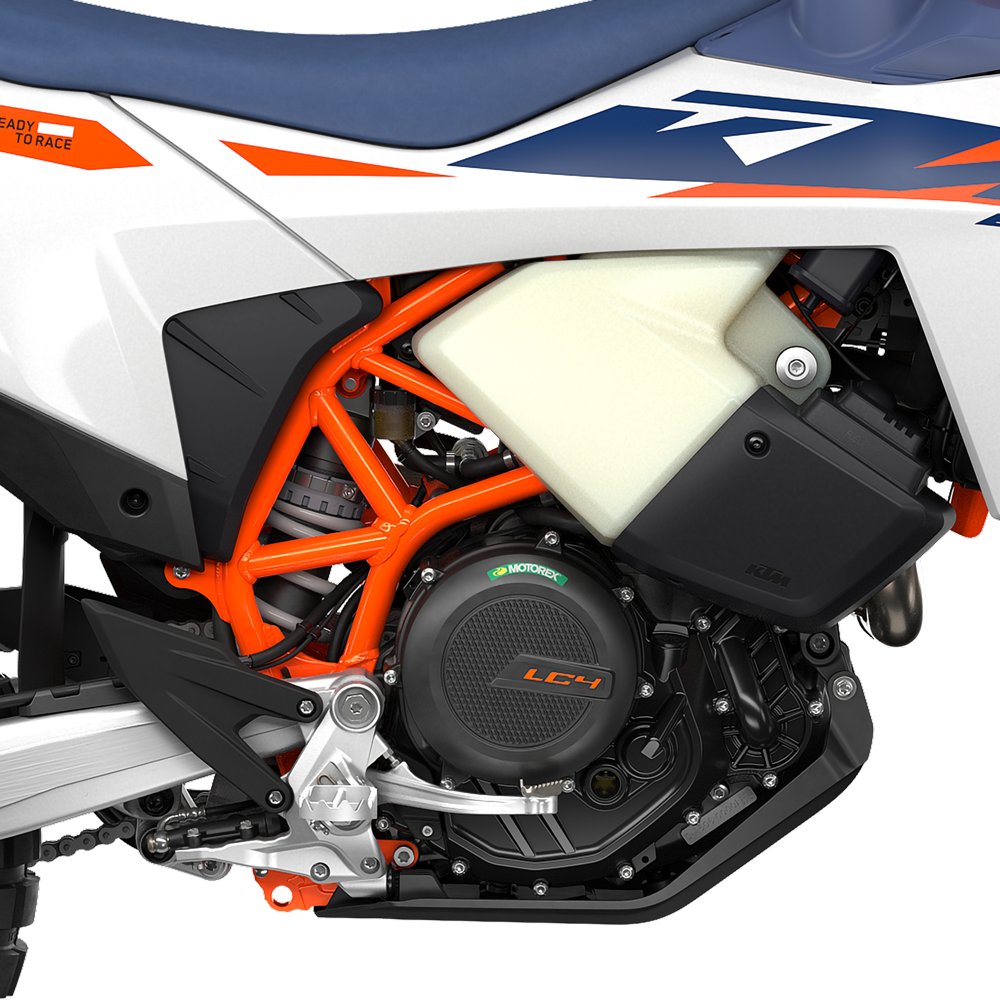

2027 KTM 690 RALLY LC4 Single-Cylinder Engine

The latest-generation LC4 engine delivers strong, reliable performance with extended service intervals, including 15,000 km oil changes. It is designed for long-distance riding and demanding off-road use.

2027 KTM 690 RALLY Ride Modes & Electronic Rider Aids

The KTM 690 RALLY features multiple Ride Modes, including Street, Off-road, and optional RALLY Mode. In RALLY Mode, riders can adjust traction control and throttle response for precise terrain adaptation.
Advanced rider aids include cornering ABS and cornering MTC, utilizing a 6D sensor to adapt braking and traction control during cornering. Dynamic Slip Adjust, available in RALLY Mode, automatically increases wheel spin when additional traction is required, before returning to the rider's preset setting.

2027 KTM 690 RALLYBraktec Clutch System

The Braktec hydraulic system provides consistent clutch performance for precise rider control. It is integrated with the optional Quickshifter+ system, enabling seamless up- and downshifts without clutch input.

2027 KTM 690 RALLY BREMBO Brakes

Brembo brakes with 300 mm front and 240 mm rear discs deliver strong and consistent stopping power across on-road and off-road conditions.

2027 KTM 690 RALLY WP XPLOR Suspension

WP XPLOR front forks feature separate compression and rebound damping adjustability, while the rear shock offers full adjustability, including rebound, high- and low-speed compression, and preload. This allows riders to precisely adapt suspension performance to different terrain and riding conditions.

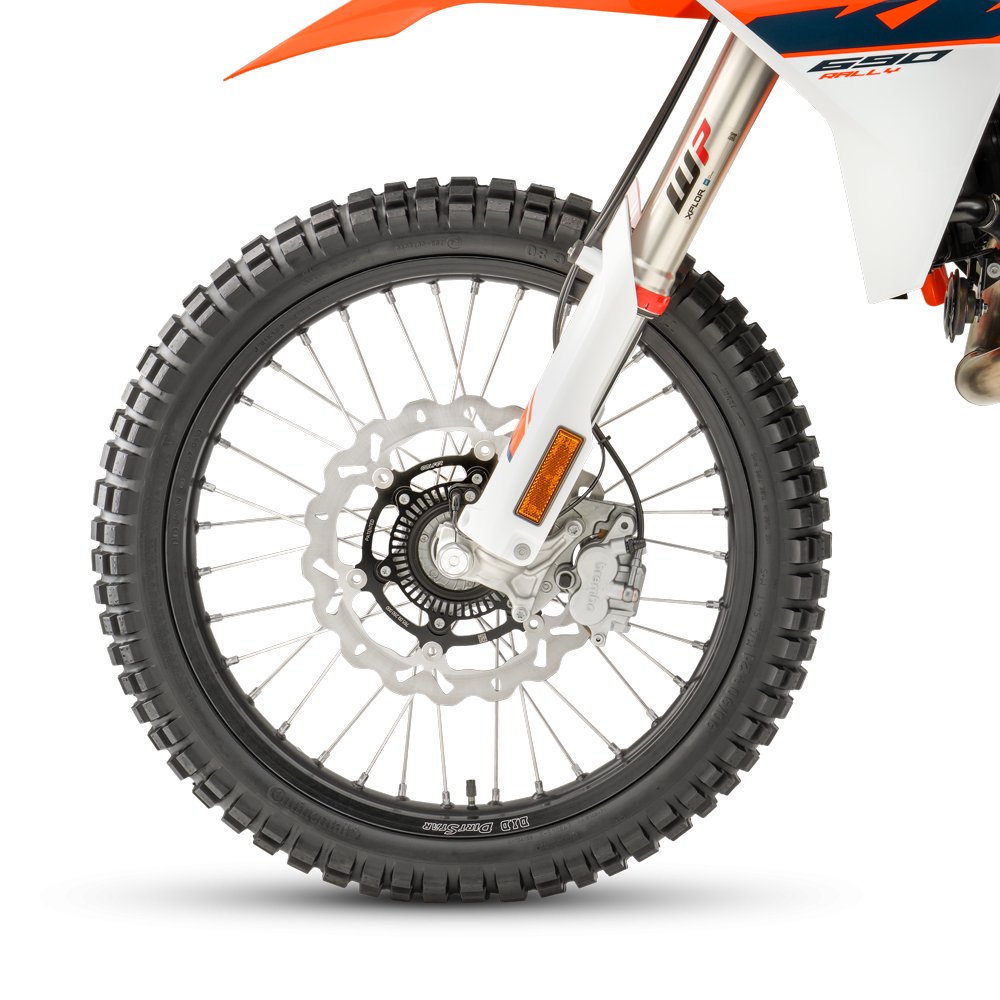

2027 KTM 690 RALLYWheels and Tires

A 21-inch front and 18-inch rear wheel setup, combined with Continental TKC 80 tires, delivers reliable grip and durability across dirt, gravel, and mixed-surface riding.

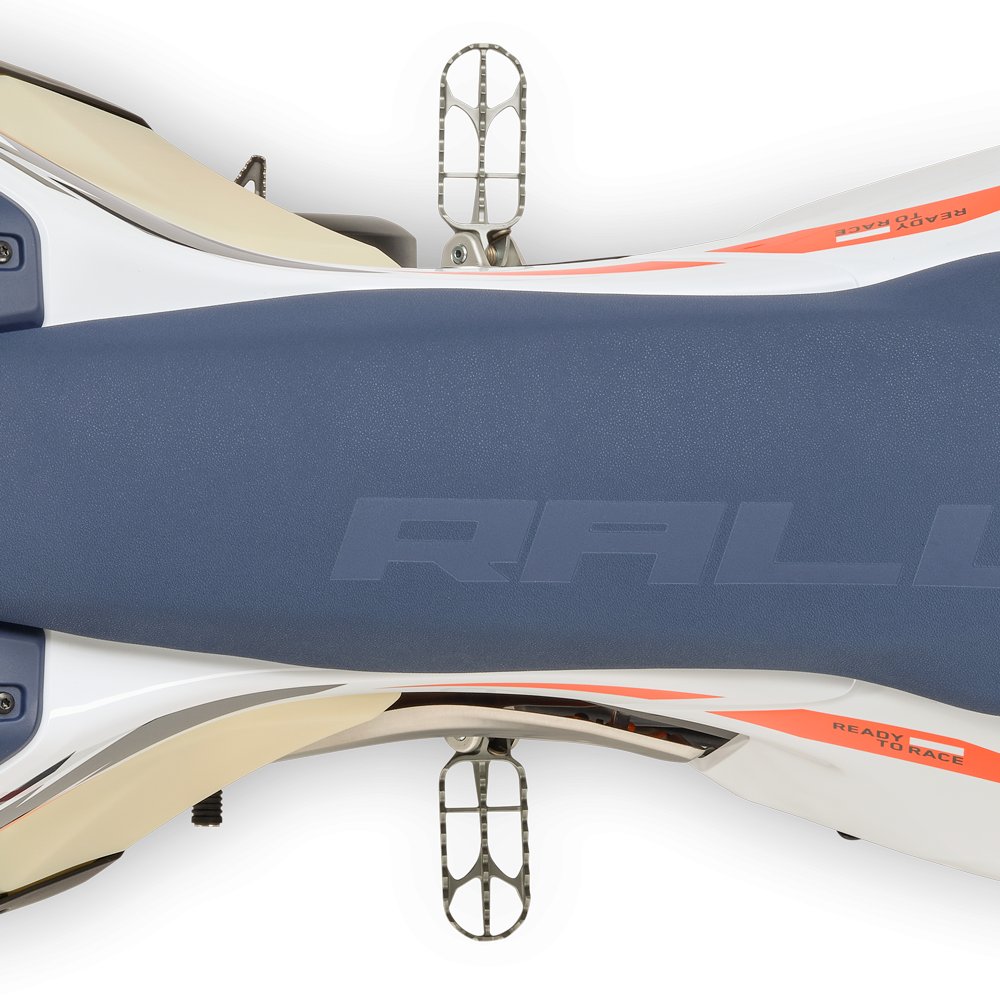

2027 KTM 690 RALLY Footpegs

Wide "no-dirt" footpegs prevent mud build-up and provide consistent grip. Optional rubber inserts can be fitted for increased comfort during road use.

2027 KTM 690 RALLY Rider Ergonomics

The rider triangle is designed to allow unrestricted movement, supporting both seated riding and standing control across varied terrain.

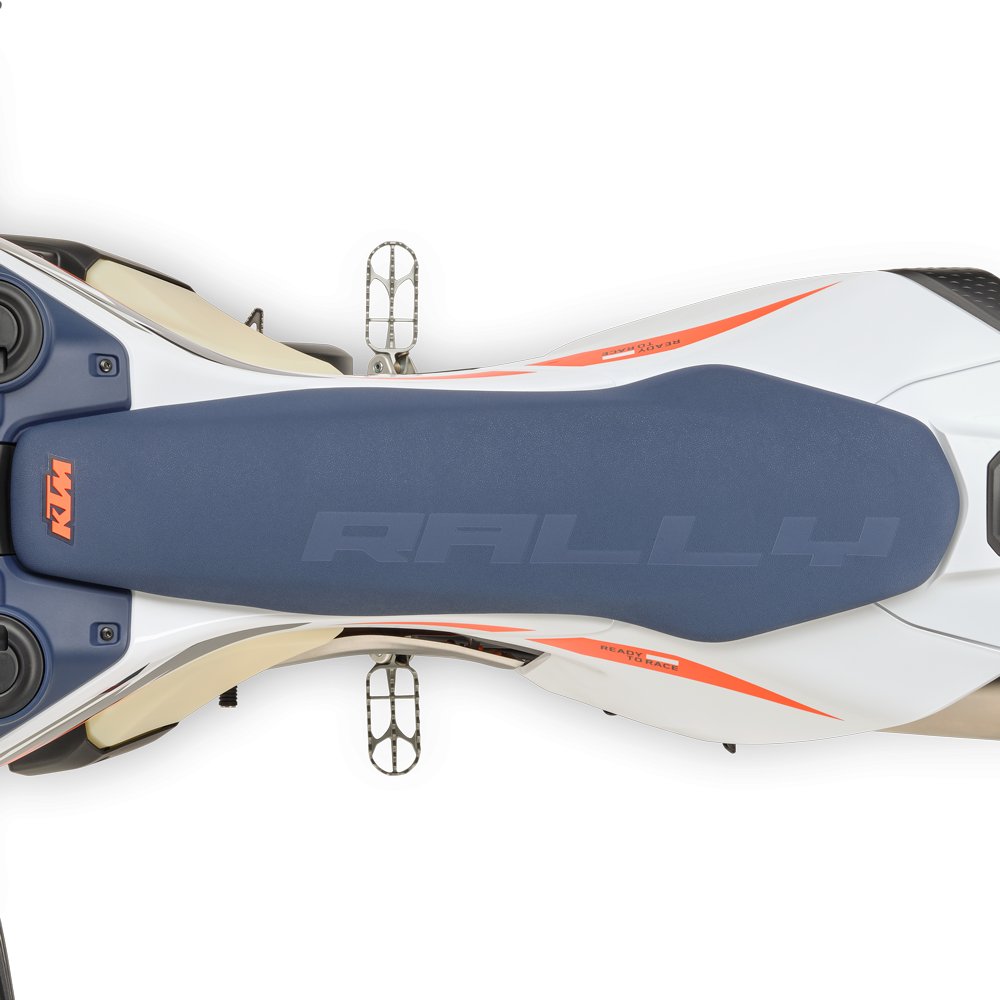

2027 KTM 690 RALLYSeat

The 36.8 in (935 mm) seat height and ergonomic shape allow fluid rider movement while providing comfort during longer liaison sections between off-road stages.

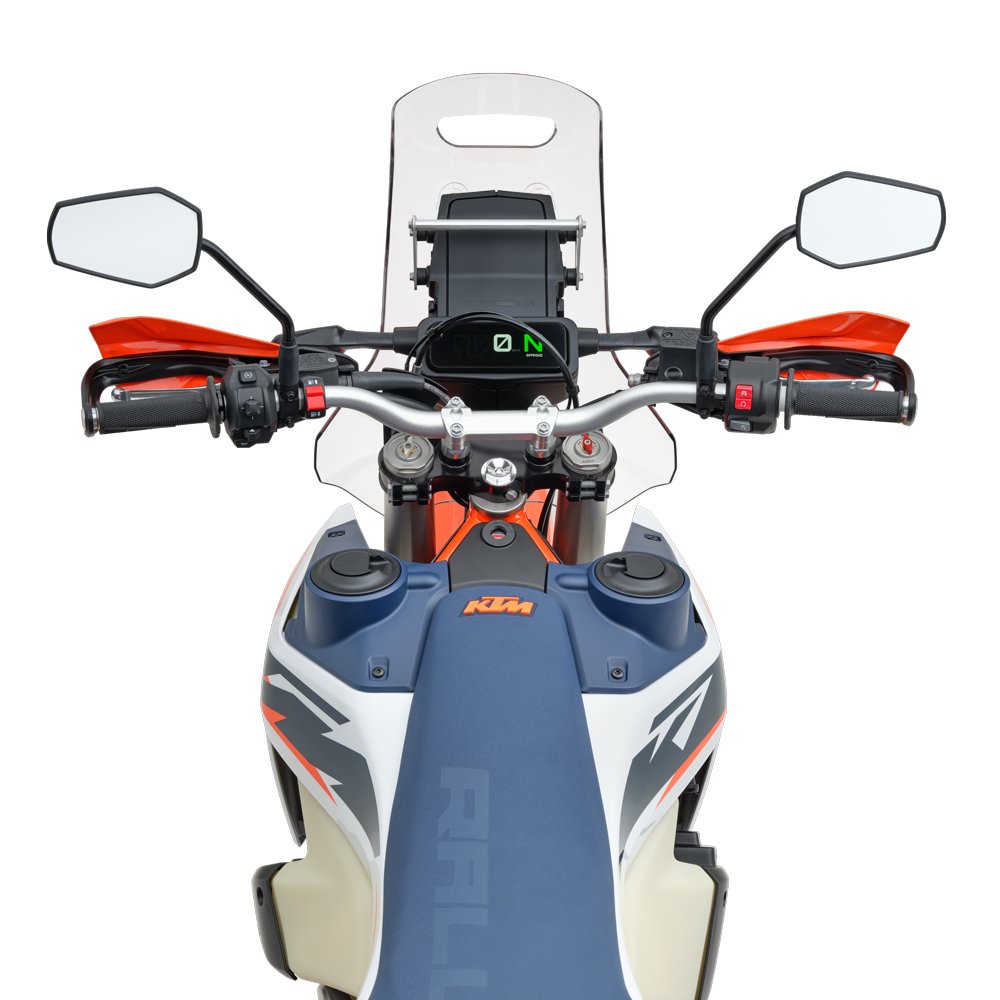

2027 KTM 690 RALLY Rally Tower & Windshield

A purpose-built rally tower with integrated windshield improves wind protection at higher speeds and over long distances. This reduces fatigue during extended off-road stages and fast liaison sections.

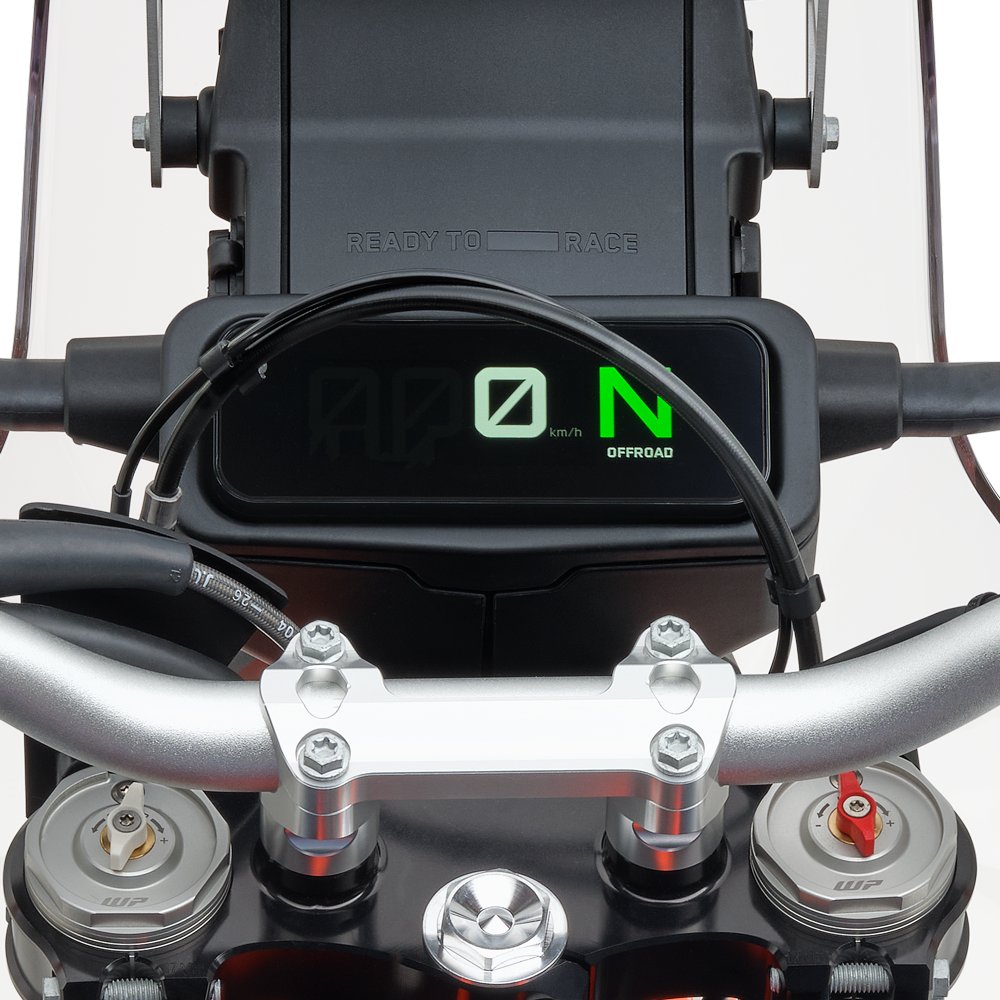

2027 KTM 690 RALLY 4.2” TFT Display & Connectivity

A 4.2" TFT display delivers clear access to ride modes, navigation, and bike information. The compact layout keeps key data visible without distracting from the terrain ahead.

2027 KTM 690 RALLYRally Bodywork

Slim, rally-inspired bodywork is designed for rider movement and control, allowing easy transitions between seated and standing riding in technical terrain.

Name

Link
Technical Specifications Download



2027 KTM 690 RALLY Premium Manufacturer's Warranty

This motorcycle comes with a PREMIUM MANUFACTURER'S WARRANTY. Riders enjoy up to 4 years of coverage; ride worry-free and experience the thrill of KTM with added peace of mind. To keep the warranty valid, regular services must be performed according to the service plan at an authorized KTM dealer. More information and details on how to benefit from this offer can be found on the KTM warranty page. Valid from Model Year 2025 onwards for all street legal motorcycles across the entire street range. Previously limited to selected models, the Premium Manufacturer's Warranty now covers the entire street range.
EMS
Keihin EMS with RBW, twin ignition
Power
79 PS
DESIGN
1-cylinder, 4-stroke engine
Torque
73 Nm
Cooling
Liquid cooled
Silencer
Stainless steel primary and secondary silencer
Engine Oil
Motorex Power Synth SAE 10W-50
DISPLACEMENT
692.7 cm³
Transmission
6-speed
CO2 Emissions
99 g/km
Engine Stroke
4-Stroke
Engine Cylinder
Single cylinder
CHAIN
520 X-Ring
Trail
121 mm
Wheelbase
1506 mm
REAR BRAKE
Brembo single-piston floating caliper, brake disc
FRONT BRAKE
Brembo twin-piston floating caliper, brake disc
FRAME DESIGN
Chromium-Molybdenum steel trellis frame, powder coated
Steering Head Angle
62.3 °
REAR SUBFRAME DESIGN
Self-supporting plastic tank
Rear Brake Disc Diameter
240 mm
Front Brake Disc Diameter
300 mm
Brake Disc Diameters (front/rear)
300 / 240 mm
Wheels
1.85 x 21"; 2.5 x 18" / Spoked wheels with aluminum rims
Wheelbase
1506 ± 15 mm
Seat Height
935 mm
Ground Clearance
265 mm
Wheelbase Tolerance
0.59 inch
Weight (without Fuel)
161.5 kg
Tank Capacity (approx.)
20 l
Rear Suspension
WP XPLOR with Pro-Lever linkage
Front Suspension
WP XPLOR-USD, Ø 48 mm
Suspension Travel (rear)
250 mm
Front Suspension Addition
Compression, rebound
Suspension Travel (front)
265 mm
Front Suspension Adjustment
Compression (high and low speed), rebound and preload adjustment
