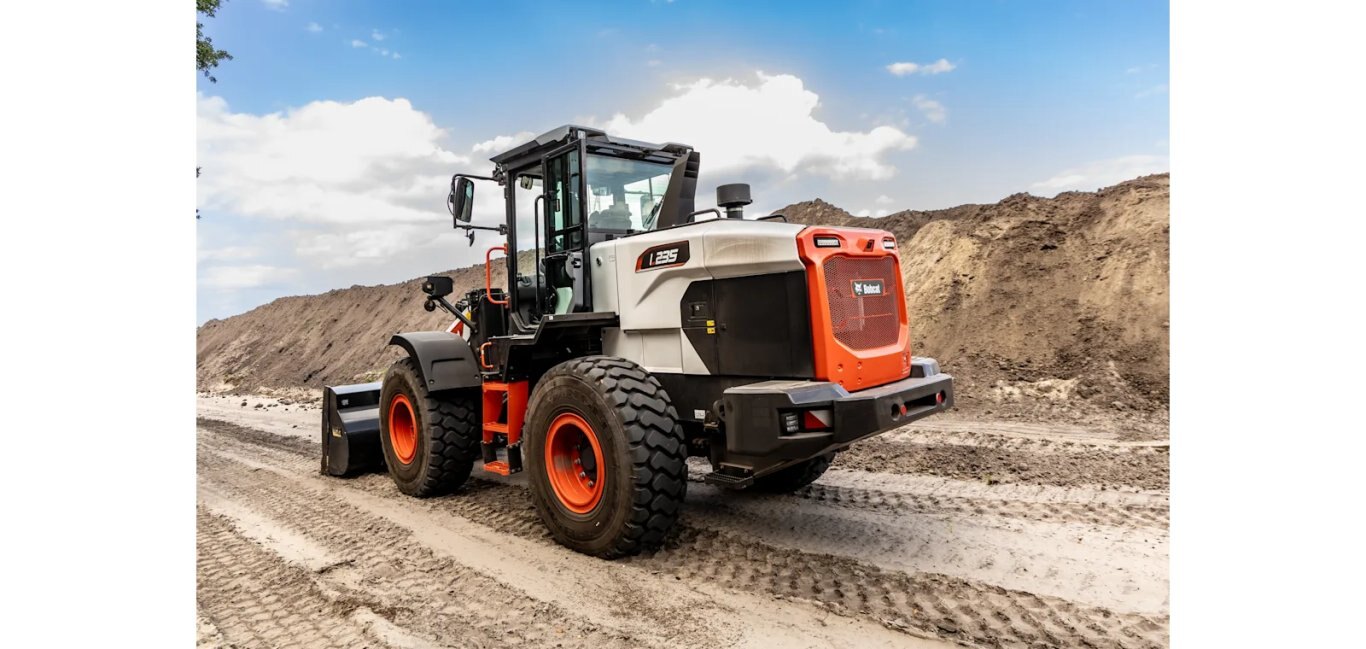

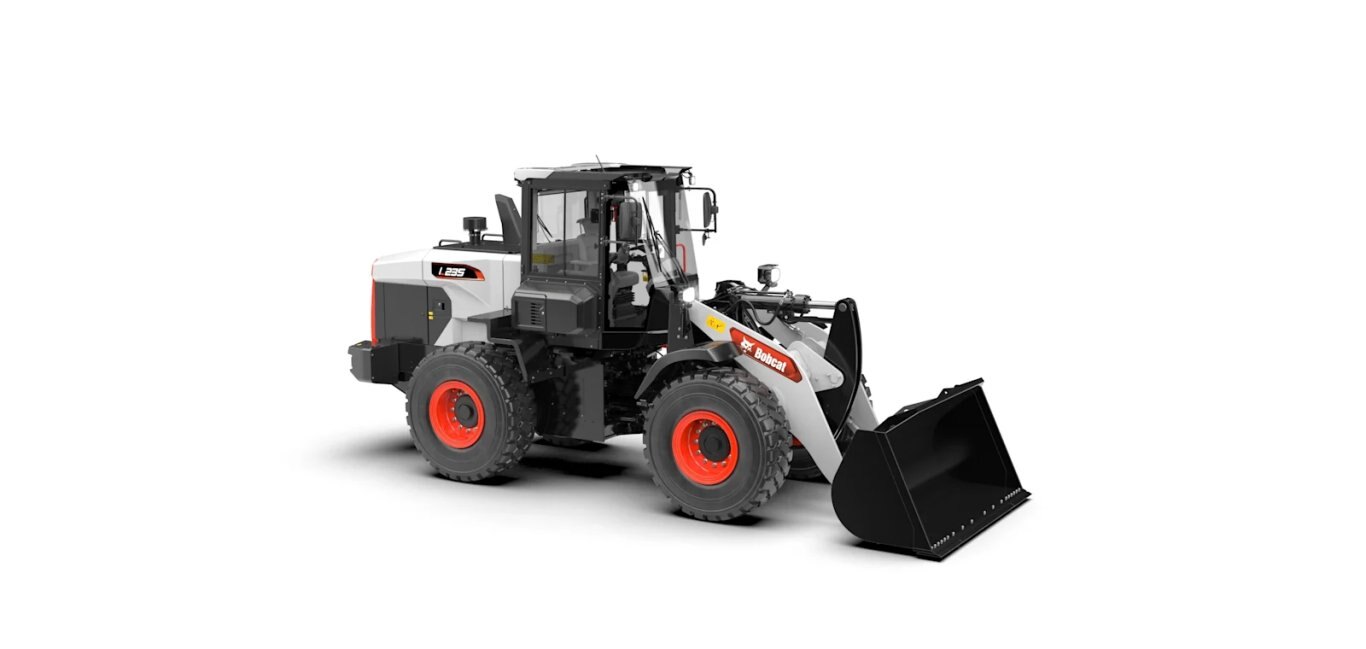

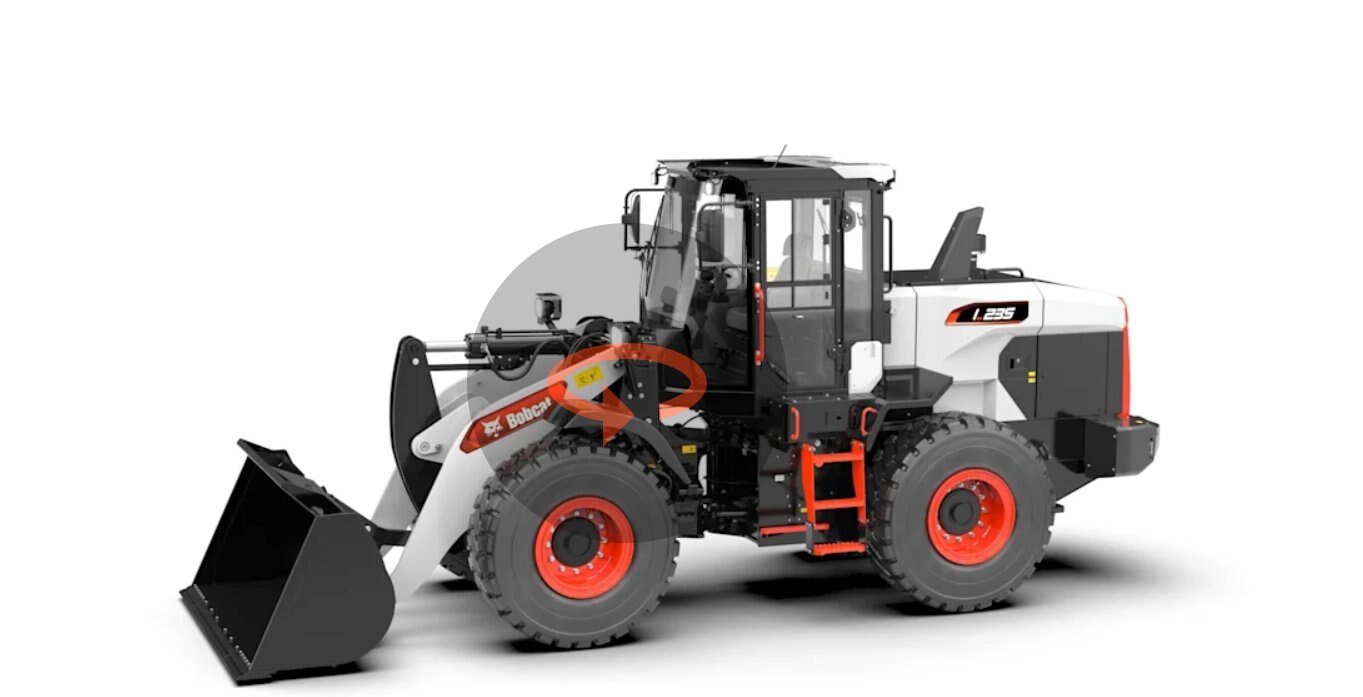

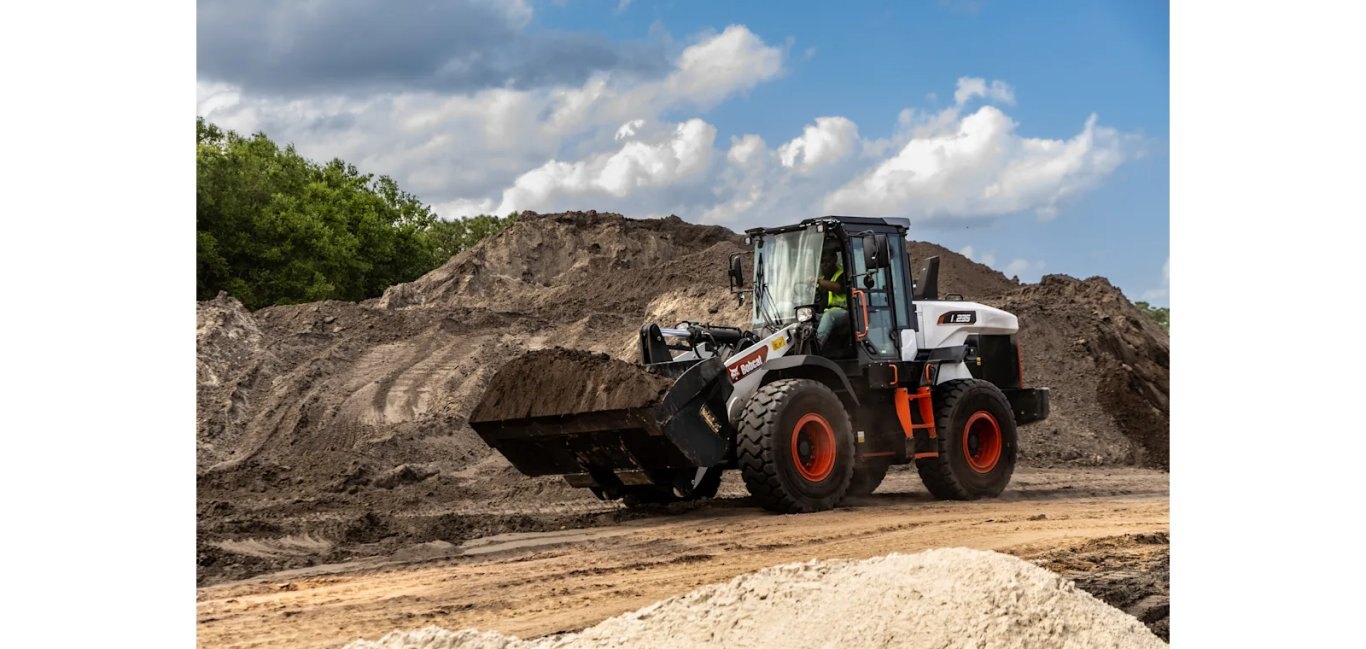

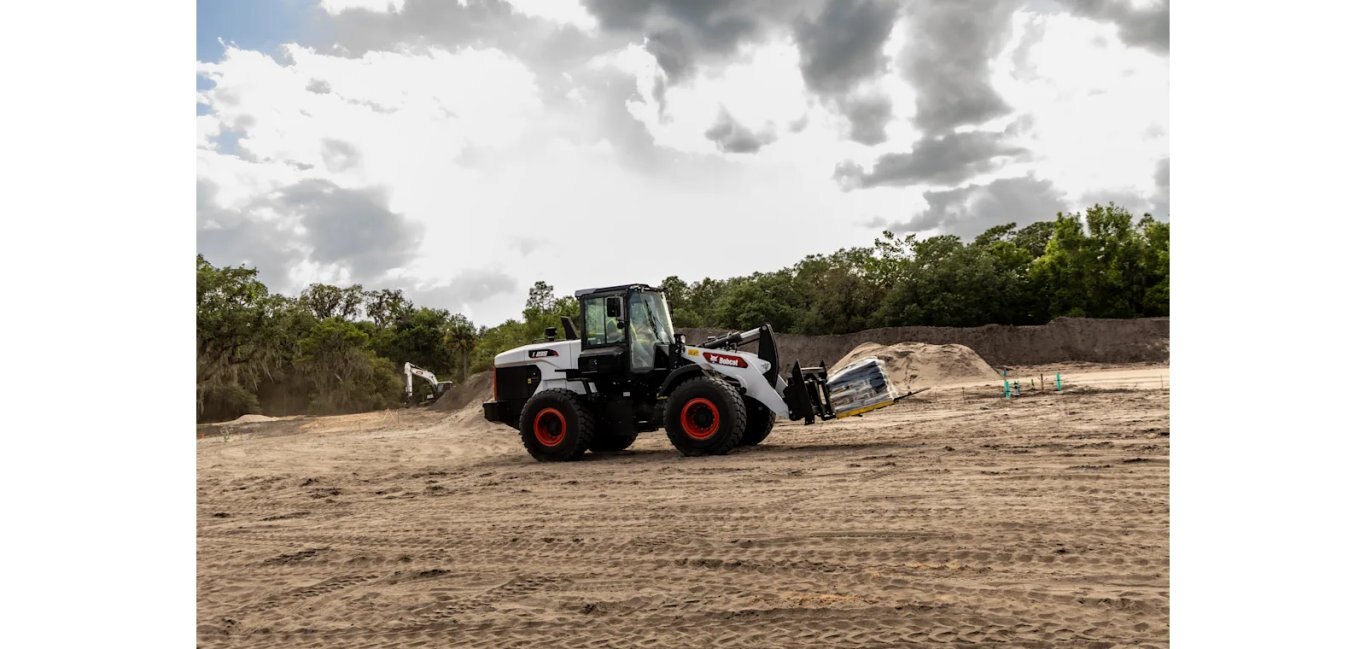

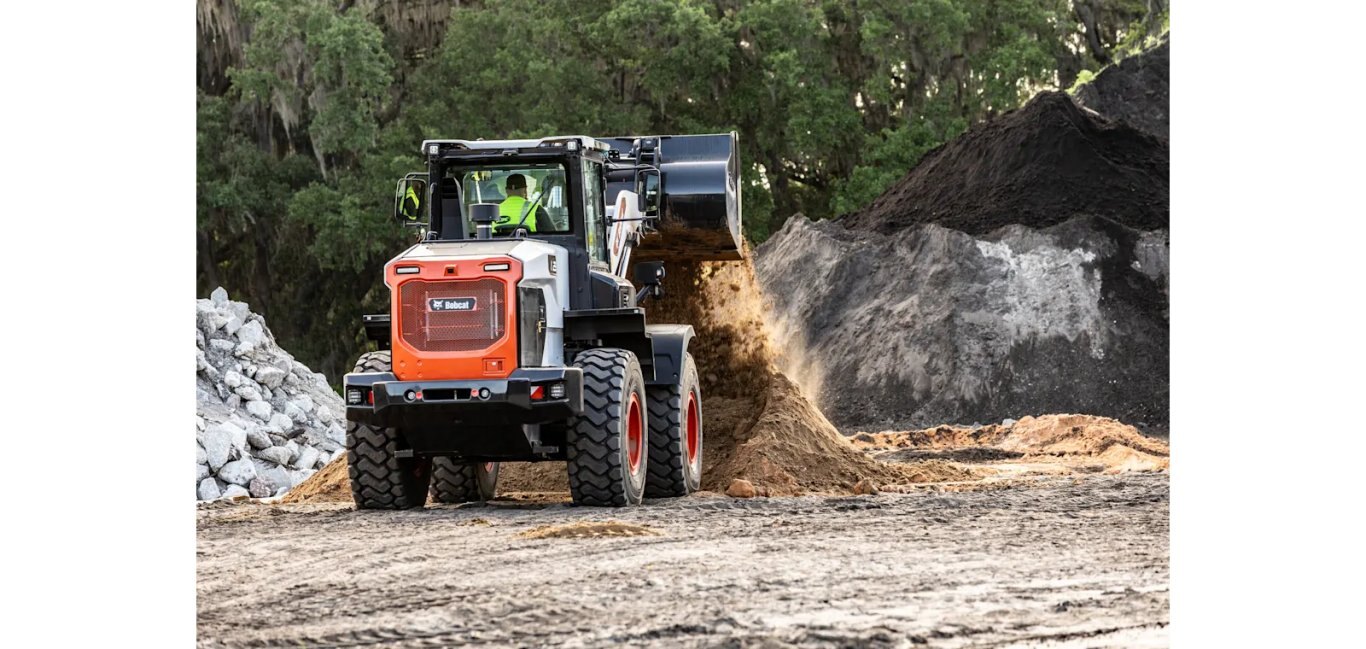

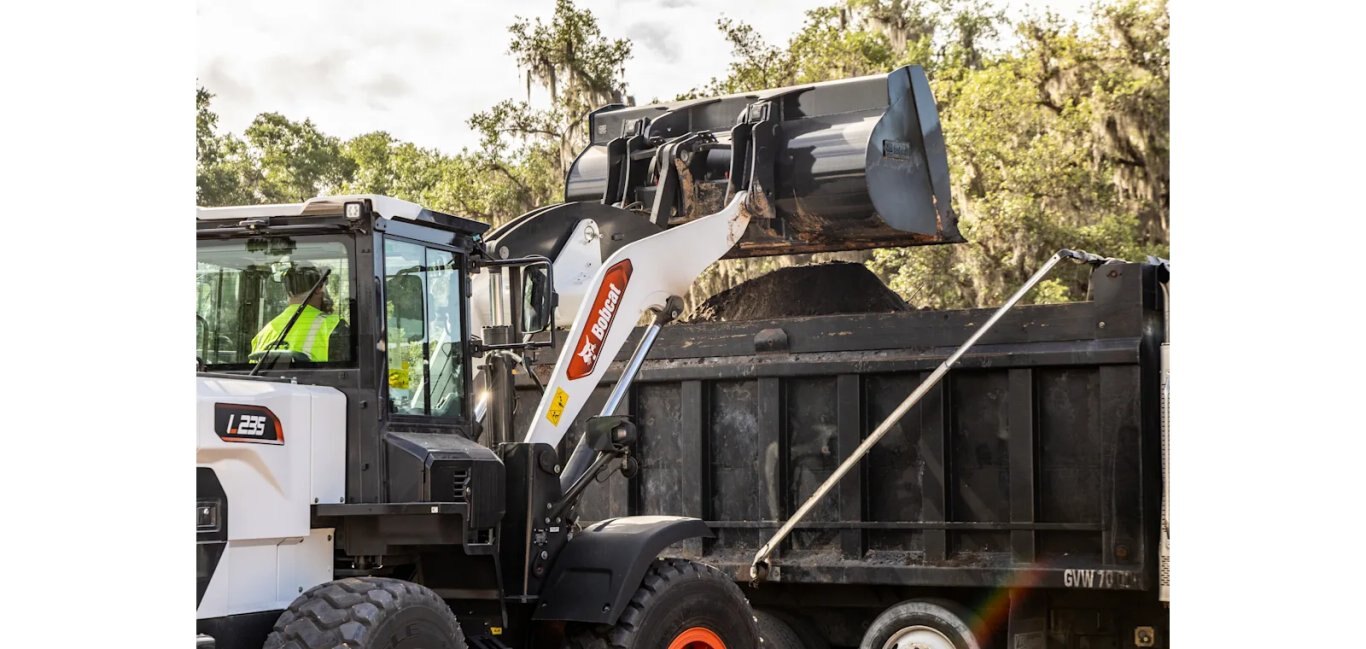

Bobcat L235 Large Wheel Loader
- Location:
- Premier Trailer
Call for Price
Province
New Brunswick
Overview
Specifications
engine
capacities
dimensions
literature
performance
drive system
hydraulic system
l235 key specifications
Videos
Documents
Model
L235
Category Name
Equipment
Year
2027
Sale Type
New
Manufacturer
Bobcat
Province
New Brunswick
Horsepower
159 hp
Fuel Tank
62.1 gal
Tire Size
20.5R25 L3
Wheelbase
120 in
Wheel Tread
75.9 in
Rollback Angle
48 deg
Ground Clearance
17 in
Articulation Angle
40 deg
Width (over Tires)
98.4 in
Width (with Bucket)
100.4 in
Outside Turning Radius
212.7 in
Height With Operator Cab
130.3 in
Length Without Attachment
256.6 in
Height To Bucket Hinge Pin
151.5 in
Dump Angle @ Maximum Height
48 deg
Length With Standard Bucket
307.6 in
Inside Turning Radius With Bucket
236.4 in
Literature
| Name | Link |
| Brochure | Download |
Operating Weight
29488 lbs
Bucket Capacities
3.0-4.5 yd3 (2.2-3.4 m3)
Max. Travel Speed – Forward
24.2 mph
Max. Travel Speed – Reverse
18.6 mph
Tipping Capacity With Bucket (Straight)
23853 lbs
Tipping Capacity With Bucket (Articulated)
21025 lbs
Rated Operating Capacity With Forks (Straight)
7249 lbs
Rated Operating Capacity With Bucket (Straight)
11926 lbs
Rated Operating Capacity With Forks (Articulated)
6292 lbs
Rated Operating Capacity With Bucket (Articulated)
10512 lbs
Main Drive
Power Shift 4F/4R
3rd Spool Pressure
4061 psi
Main Pump Pressure
3626 psi
3rd Spool Max. Flow Rate
40.9 gpm
Main Pump Max. Flow Rate
40.9 gpm
Horsepower
159 hp
Operating Weight
29488 lbs
Videos
Resources
Large Wheel Loader
The Bobcat® L235 large wheel loader combines powerful lift performance, fuel-efficient operation and premium comfort to confidently tackle big, high-volume material handling jobs.
