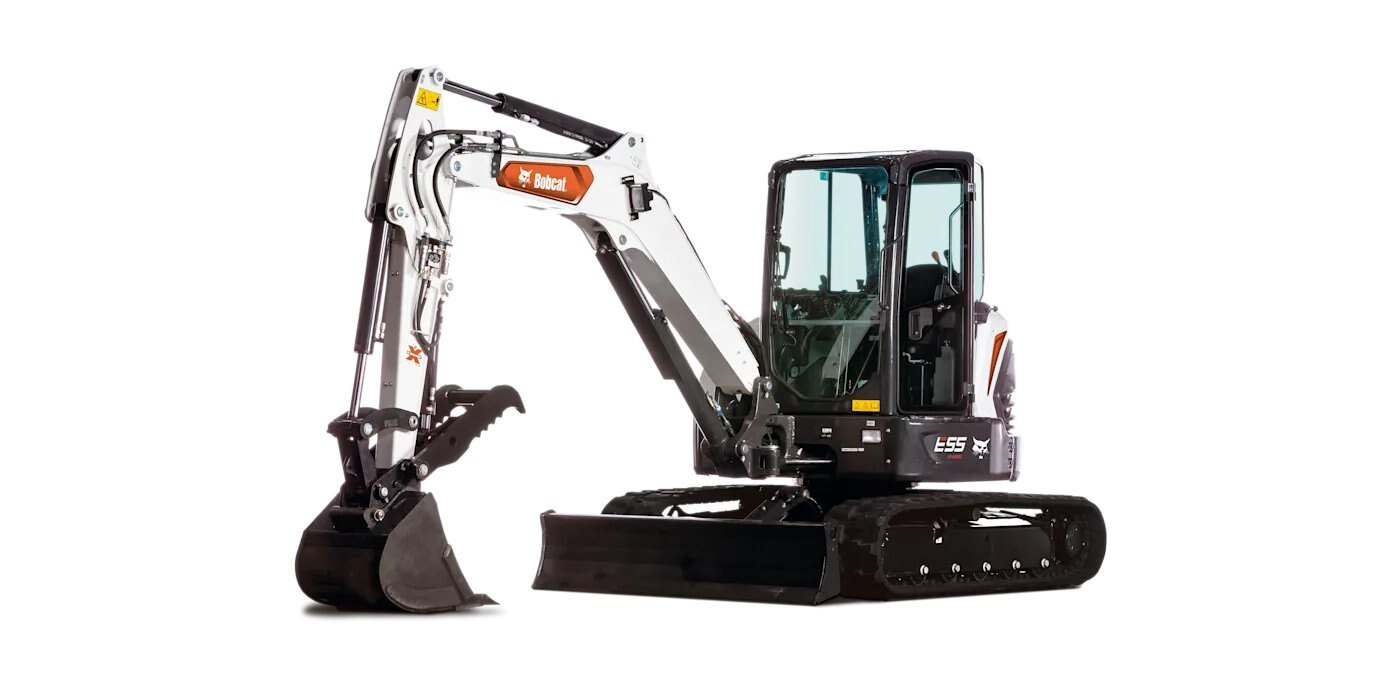

Bobcat E55 Compact Excavator
- Location:
- Premier Trailer
Call for Price
Province
New Brunswick
Overview
Specifications
engine
capacities
dimensions
literature
performance
hydraulic system
key specifications
Documents
Model
E55 Compact Excavator
Category Name
Equipment
Year
2027
Sale Type
New
Manufacturer
Bobcat
Province
New Brunswick
Horsepower
49.7 hp
Engine Model
D18
Maximum Governed RPM
2200 rpm
Fuel Tank
19 gal
Width
77.2 in
Length
208.66 in
Tail Swing Overhang - Standard Arm
0.6 in
Literature
| Name | Link |
| Brochure | Download |
Lift Radius
118 in
Weight Class
5 t
Travel Speed - Low
1.8 mph
Rated Lift Capacity
6746 lbs
Bucket Digging Force
9511 lbf
Travel Speed (Maximum)
2.8 mph
Maximum Reach At Ground Level
19.4 ft
Max Dump Height - Standard Arm
13 ft
Auxiliary Pressure
3045 psi
Auxiliary Std Flow
20 gpm
Width
77.2 in
Dig Depth
11.4 ft
Horsepower
49.7 hp
Cab Height
100.2 in
Max Dump Height
13 ft
Operating Weight
11357 lbs
Transport Length
208.7 in
Arm Digging Force
6987 lbf
Reach At Ground Level
19.4 ft
Documents
Resources
The E55 puts the perfect balance of power and agility in your fingertips. This minimal tail-swing excavator is the ideal machine if you’re looking for additional weight and performance in a compact excavator that can flex its might on small jobsites and get more done in less time.
